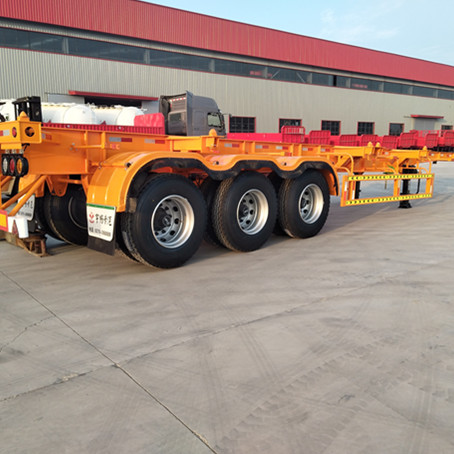

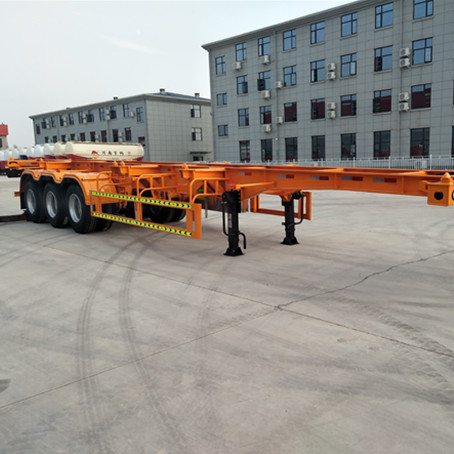

What Is a Container Chassis Semi-Trailer?

A container chassis semi-trailer is a specialized transport trailer designed to carry intermodal shipping containers securely on public roads. Also known as a skeleton trailer or skeletal semi-trailer, it uses a strong steel framework and container locking devices instead of a conventional full-length cargo deck.

Container chassis semi-trailers play an important role in international logistics. They connect ports, railway terminals, container depots, warehouses, and distribution centers, allowing standardized shipping containers to move between different modes of transportation without unloading the goods inside.

The defining feature of a container chassis is its purpose-built structure. Rather than supporting cargo across a continuous platform, the chassis supports a container at designated structural points, typically through its corner castings and twist-lock connections.

This design can reduce unnecessary structural weight and simplify container handling. However, the trailer must be correctly configured for the container dimensions, weight distribution, and operating conditions.

For logistics companies and fleet operators, choosing the right container chassis helps improve transport efficiency, maintain secure container connections, and support reliable daily operations.

Main Components of a Container Chassis Semi-Trailer

A container chassis semi-trailer consists of several interconnected structural and mechanical systems. Each component contributes to load support, container security, and road performance.

Main Beams and Cross Members

The main beams form the primary load-bearing structure of the trailer. They transfer the weight of the container and its cargo toward the tractor connection and trailer axles.

Cross members connect and reinforce the main structure. Their arrangement depends on the chassis design, expected loading conditions, and the positions where container loads are introduced.

Many chassis use high-strength structural steel, although the exact material grade, beam dimensions, and reinforcement requirements vary by manufacturer and model.

A well-designed frame must provide sufficient strength and fatigue resistance without adding unnecessary weight.

Container Twist Locks

Twist locks are among the most important components of a container chassis.

These mechanical locking devices engage with the container's corner castings to secure the container to the trailer during transportation.

Their positions must match the intended container configuration. A chassis designed for one container length may not have the appropriate locking arrangement for another.

Before departure, operators must confirm that the container is correctly seated and that all required locking devices are fully engaged and secured.

Kingpin and Landing Gear

The kingpin connects the chassis to the tractor's fifth wheel and transfers part of the trailer load to the tractor.

Landing gear supports the front of the trailer when it is disconnected from the tractor. It also allows operators to adjust the trailer's front height during coupling and uncoupling.

Both components must be appropriately rated and maintained for the trailer's intended operating weight.

Axles, Suspension, and Tires

The axle system carries the rear portion of the trailer load and distributes it to the road.

Container chassis may use two, three, or other axle configurations depending on the destination market, payload requirements, and applicable regulations.

Common suspension options include mechanical leaf-spring suspension and air suspension.

Mechanical suspension is often selected for its straightforward construction and maintenance requirements. Air suspension can offer different ride and load-management characteristics, but its suitability depends on the complete vehicle configuration.

Tire size, axle spacing, and suspension geometry must also be considered when calculating legal axle loads.

Braking and Electrical Systems

Container chassis semi-trailers require braking, lighting, and electrical systems compatible with the tractor and local road regulations.

Depending on the market, the braking system may include electronic or anti-lock braking functions.

Regular inspection of air lines, electrical connectors, brake components, and lights is essential for safe operation.

What Types of Containers Can a Container Chassis Carry?

Container chassis semi-trailers are used to transport different types of intermodal containers. However, compatibility depends on the chassis dimensions, twist-lock layout, rated capacity, and applicable transport regulations.

20-Foot Containers

A 20-foot container is widely used for general cargo and relatively dense goods.

Chassis designed for 20-foot containers must position the container correctly so that loads are distributed within the vehicle's structural and axle limits.

Some chassis are specifically designed for one 20-foot container, while certain configurations can accommodate alternative container arrangements.

40-Foot Containers

The 40-foot container is common in international shipping and logistics.

A 40-foot container chassis provides the necessary structural support and locking positions for the container's standardized corner castings.

Buyers should verify the chassis length, rear clearance, axle position, and load distribution rather than assuming that any long skeletal trailer can safely transport a 40-foot container.

45-Foot Containers

Some chassis are designed to accommodate 45-foot containers, including certain extendable or specially configured models.

These applications require careful consideration of container geometry, locking positions, overall vehicle dimensions, and local road restrictions.

A standard 40-foot chassis should not be assumed to support a 45-foot container without manufacturer confirmation.

High-Cube, Refrigerated, and Tank Containers

A container chassis may also transport specialized ISO containers when the configuration is suitable.

• High-cube containers: Require attention to the total loaded vehicle height and route clearance.

• Refrigerated containers: May require compatible electrical arrangements or access to a suitable power source, depending on the operating setup.

• ISO tank containers: Require verification of loaded weight, center of gravity, support points, and any applicable cargo transport regulations.

The chassis must be approved for the intended container and operating conditions. Container type alone does not determine compatibility.

Container Chassis vs. Flatbed Trailer: What's the Difference?

Container chassis and flatbed trailers are both widely used in freight transportation, but they are designed for different cargo-handling requirements.

A container chassis is purpose-built for transporting intermodal containers. A flatbed trailer provides a continuous or substantially continuous loading platform for a broader range of cargo.

The following table summarizes their main differences.

When Is a Container Chassis the Better Choice?

A container chassis is generally preferable when the main transportation task involves regular movement of standardized shipping containers.

Its dedicated locking arrangement and skeletal structure are suited to container terminal operations, port drayage, and intermodal logistics.

For companies moving containers repeatedly between ports and inland facilities, a purpose-built chassis can provide a practical and efficient solution.

When Is a Flatbed Trailer More Suitable?

A flatbed trailer is often a better option when the cargo varies significantly in size, shape, or packaging.

It can transport materials such as steel products, industrial equipment, and construction supplies, provided the cargo is properly supported and secured.

Some flatbed trailers can also carry containers when equipped with appropriate locking devices and designed for the required loads.

Buyers who need to transport both containers and general freight can explore YOUCAN's flatbed trailers to compare alternative transport solutions.

The right choice depends on the actual cargo mix, loading equipment, and operating requirements rather than the trailer's appearance alone.

How to Choose the Right Container Chassis Semi-Trailer

Selecting a suitable container chassis semi-trailer requires a clear understanding of the containers being transported, the operating routes, and the destination country's regulations.

The following factors should be considered before purchasing.

1. Confirm the Container Size and Configuration

Start by identifying the containers your fleet will transport most frequently.

A company handling only 40-foot containers may need a different chassis configuration from an operator regularly switching between 20-foot and 40-foot units.

Important questions include:

• Will the trailer transport 20-foot, 40-foot, or 45-foot containers?

• Is compatibility with high-cube containers required?

• Will the chassis carry loaded or empty containers?

• Are special container types, such as ISO tank containers, part of the operation?

• Does the business need a fixed-length or extendable chassis?

The answers determine the required frame dimensions, twist-lock positions, and other design features.

2. Calculate the Required Payload

Container chassis capacity should be evaluated using the maximum expected loaded container weight.

Buyers must distinguish between the container's gross mass, the trailer's rated payload, and the legal weight limits of the complete tractor-trailer combination.

For example, a container may be within its own maximum permitted gross mass while still exceeding the legal axle-load limits of a particular vehicle combination.

The correct chassis must satisfy both structural requirements and the applicable transport regulations.

3. Select the Appropriate Axle Configuration

Axle number and spacing influence load distribution, maneuverability, and legal operating capacity.

A three-axle container chassis may be suitable for many heavy-duty transport applications, but three axles do not automatically guarantee a particular legal payload.

Buyers should confirm local axle-load restrictions, bridge requirements, and overall vehicle weight limits before choosing a configuration.

4. Consider Suspension and Road Conditions

Road conditions can significantly affect trailer maintenance and operating costs.

For operations involving rough roads or demanding working environments, buyers should discuss suspension durability, ground clearance, tire specifications, and component availability with the manufacturer.

Air suspension and mechanical suspension have different characteristics, so the final choice should reflect operating conditions and maintenance capabilities.

5. Inspect the Frame and Twist-Lock Arrangement

The frame and container locking system deserve particular attention because they directly affect cargo support and security.

Before confirming an order, buyers should request a technical drawing showing the main dimensions, container support locations, and twist-lock arrangement.

The drawing should clearly identify which container configurations are supported.

Buyers should also review the proposed welding specifications, structural reinforcements, corrosion protection, and accessibility of components requiring regular maintenance.

6. Verify Local Regulations and Tractor Compatibility

Container chassis specifications vary across international markets.

Requirements may include restrictions on vehicle length, width, height, axle loads, lighting, braking systems, and registration.

The trailer must also be compatible with the intended tractor, including fifth-wheel height, kingpin specification, coupling clearance, and electrical and pneumatic connections.

Confirming these details before production helps reduce the risk of costly modifications after delivery.

YOUCAN Container Chassis Semi-Trailers: Manufacturing and Customization

YOUCAN Trailer is a China-based semi-trailer manufacturer providing transportation equipment for customers in international markets.

Its container chassis solutions are intended for container logistics operations, including movement between ports, terminals, distribution centers, and inland transport facilities.

Different transport operations require different chassis configurations. A trailer used for frequent short-distance port deliveries may have different operating priorities from one used for long-distance highway transportation.

For this reason, buyers should evaluate their intended applications before selecting a standard or customized design.

Container Chassis Configuration Options

Depending on the project requirements and the manufacturer's available designs, container chassis specifications may include:

• Frame dimensions and structural configuration

• Supported container lengths and twist-lock positions

• Axle number and arrangement

• Mechanical or air suspension

• Tire and wheel specifications

• Landing gear and coupling components

• Braking and electrical equipment

• Surface coating and corrosion protection

Customization should be based on a confirmed technical specification rather than an assumption that one chassis design can accommodate every container type.

Manufacturing and Structural Quality

The manufacturing quality of a container chassis affects its structural durability, dimensional accuracy, and long-term maintenance requirements.

Important production stages include material preparation, frame fabrication, welding, surface treatment, painting, and final assembly.

Buyers can learn more about YOUCAN's production capabilities through its semi-trailer manufacturing facility.

For container chassis production, particular attention should be paid to the alignment of the frame, twist-lock positions, kingpin installation, axle mounting points, and other critical dimensions.

Dimensional accuracy is important because even a structurally sound trailer may be unsuitable if its container locking points do not match the intended container.

Quality Inspection Before Delivery

Before shipment, buyers should verify that the completed trailer matches the approved drawing and agreed component specifications.

Key inspection items include frame dimensions, welding quality, twist-lock operation, landing gear, suspension, braking equipment, lighting, and surface protection.

YOUCAN describes its production inspection approach on its quality control page, including material, welding, dimensional, assembly, and final delivery checks.

For international orders, inspection photographs, component information, and relevant shipment documentation can also help buyers confirm the completed configuration before dispatch.

Discuss Your Container Transport Requirements

When requesting a quotation, buyers should provide the expected container sizes, cargo weights, destination country, road conditions, preferred axle arrangement, and tractor specifications.

This information allows the manufacturer to evaluate the intended application and discuss an appropriate chassis configuration.

For product specifications, customization requirements, or quotations, contact YOUCAN Trailer with your container transportation requirements.

FAQs About Container Chassis Semi-Trailers

What Is the Main Purpose of a Container Chassis Semi-Trailer?

A container chassis semi-trailer is designed to transport intermodal shipping containers by road.

It provides a structural framework and locking system that supports and secures containers during movement between ports, railway terminals, warehouses, and other logistics facilities.

Can One Container Chassis Carry Both 20-Foot and 40-Foot Containers?

Some container chassis models are designed to accommodate both 20-foot and 40-foot containers, but not all models have this capability.

Compatibility depends on the frame design, twist-lock positions, load distribution, and approved container configurations.

Buyers should confirm the supported container sizes with the manufacturer before purchasing.

What Is the Difference Between a Container Chassis and a Skeleton Trailer?

In many markets, the terms container chassis and skeleton trailer refer to the same general type of equipment.

Both describe a trailer with an open structural frame designed primarily to transport shipping containers.

However, terminology and specific design details may vary by country and manufacturer.

How Much Weight Can a Container Chassis Semi-Trailer Carry?

The permitted payload depends on the trailer's structural rating, empty weight, axle configuration, tractor combination, and local road regulations.

There is no single payload figure applicable to every container chassis.

Buyers should verify the rated payload and legal operating limits for their intended configuration rather than relying on the axle count alone.

What Maintenance Does a Container Chassis Require?

Regular maintenance should include inspection of the frame, welds, twist locks, kingpin, landing gear, suspension, axles, tires, braking system, and electrical connections.

Operators should pay particular attention to damaged or difficult-to-operate twist locks, corrosion, loose fasteners, and signs of structural fatigue.

Maintenance intervals and procedures should follow the trailer and component manufacturers' recommendations.
