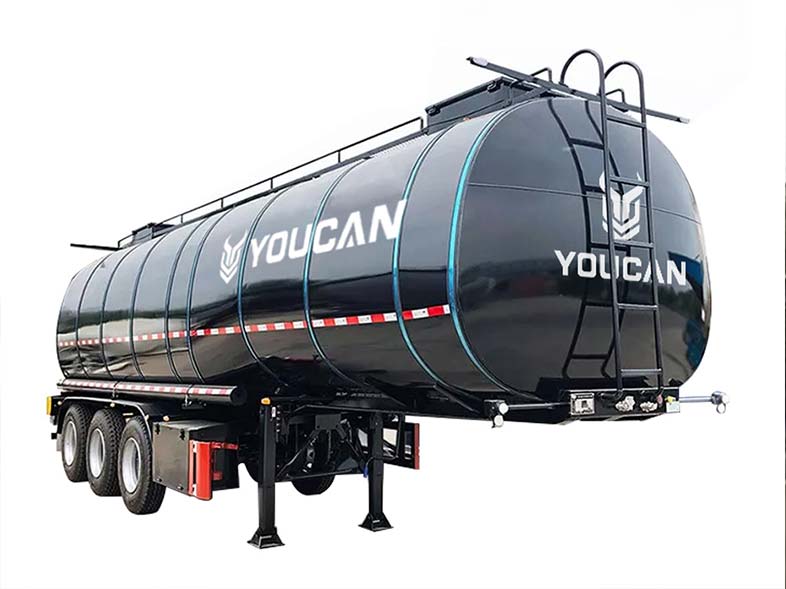

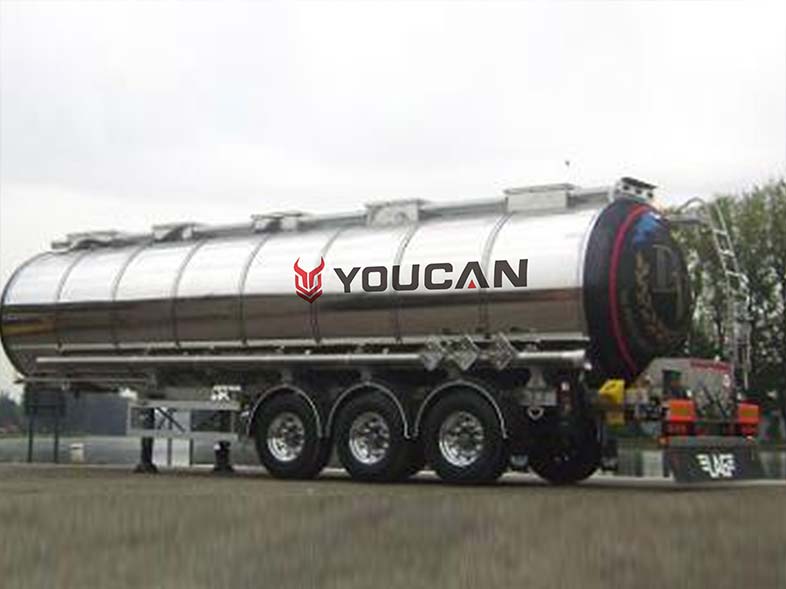

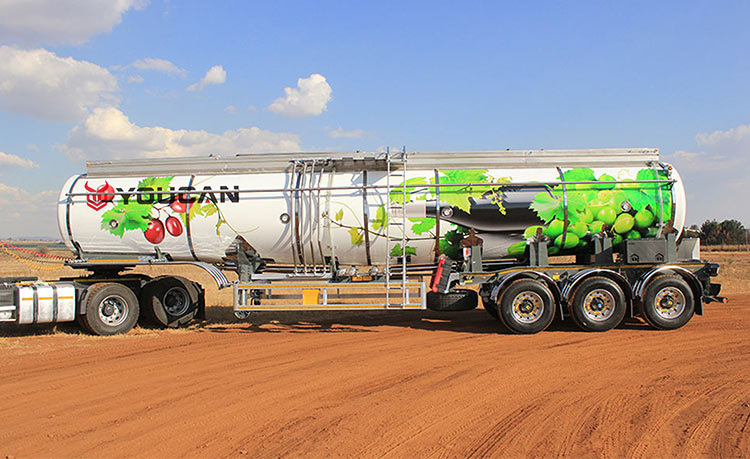

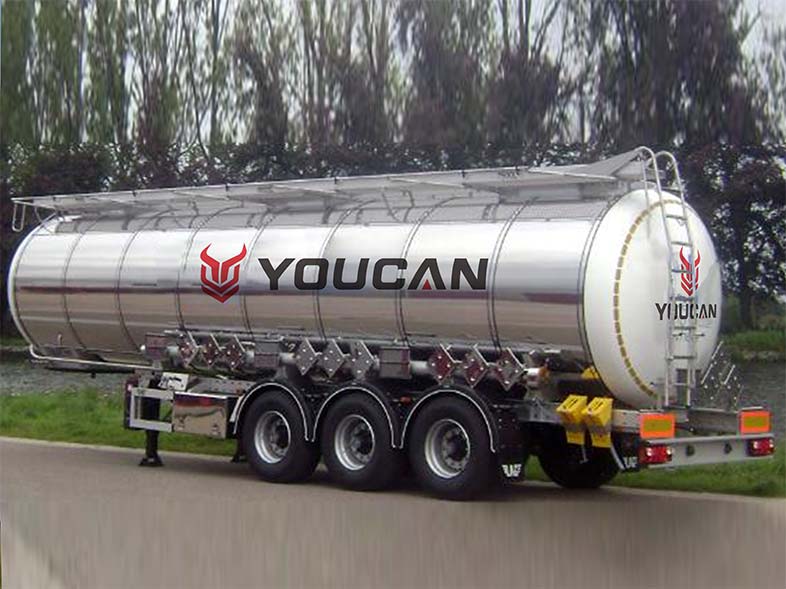

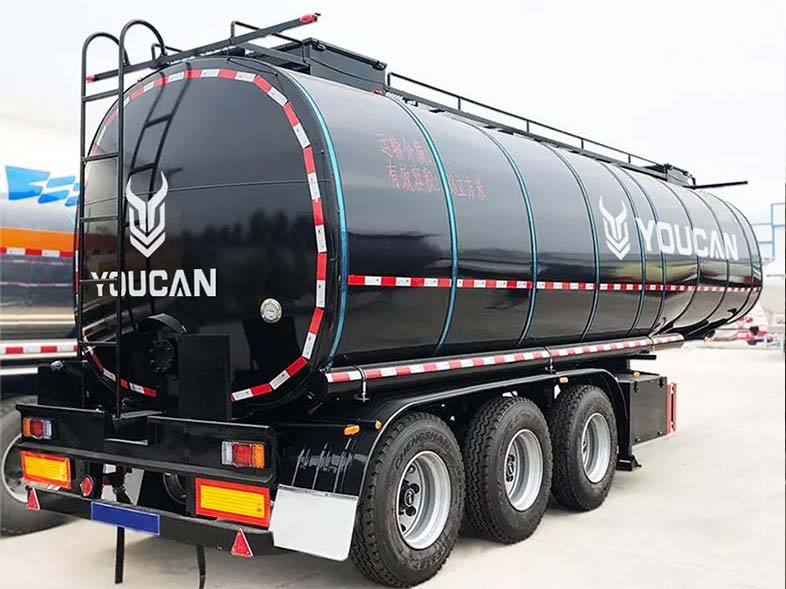

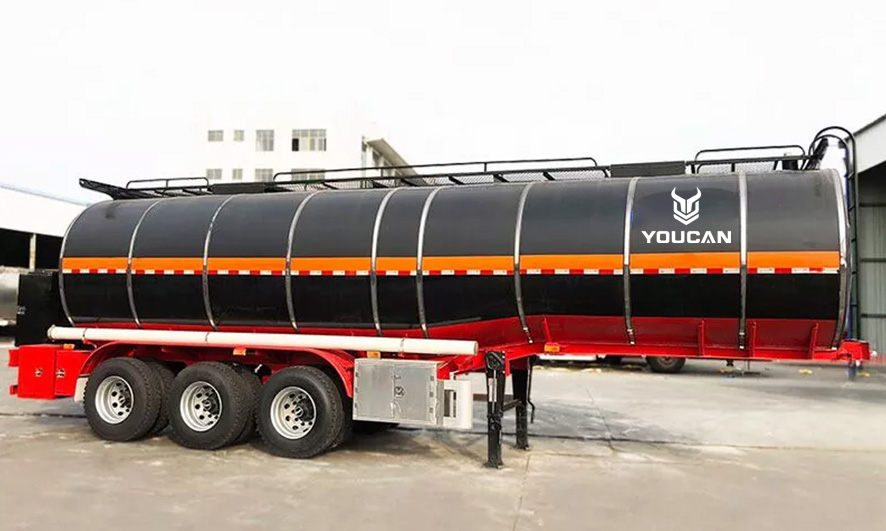

Youcan Chemical Tank Semi-trailer
Looking for a new Chemical Stainless Steel tanker? Youcan Trailer offers a variety of Chemical tanker trailers from stainless steel tanker to aluminum tanker and more! View our inventory today.

Description

Overview Of Youcan Chemical Tank Semi-trailer

Chemical Tank Trailer is a tank semi-trailer for transport of chemicals: muriatic acid, sulfuric acid, hydrofluoric acid, nitric acid, and acetic acids, etc. The texture of chemical tankers varies according to the different chemicals . The tank body material is stainless steel, carbon steel, or aluminum alloy.

The volume of the Stainless Steel tankers can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With different numbers of compartments(1-2-3..6 or more), and 2-3-4 axles to meet the different regulatory requirements of different countries.

Our pioneering views on the transport of liquid derivatives in road transport of dangerous goods, our dominance and our accumulated knowledge, have changed the standard of the industry it serves, and our premium tankers have numerous design approvals from An international authority, vehicle, driver and road safety, always at the forefront of filling, transporting and unloading operations, we minimise environmental risks and user liability. We have increased user ergonomics through safety measures on the tanker, making high dynamic loads safe and portable in difficult conditions.

Features of Youcan Chemical Tank Semi-trailer

1. CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the tanker and its components.

2. The frame adopts high strength stainless steel and the latest lightweight structure design to ensure the strength of the frame while reducing the weight to the lightest.

3. Use of robotic welding technology: The tank body is automatically welded by an advanced robot welding machine, incerases the body strength at chassis joints, reduces tension effect, provides unity of body.

4. Armature discharge box’s cover: Provides mobility and ergonomic handling even in the narrow area.

5. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.

6. Gooseneck cross section design conforms to EN 13094 standard.

Chemical tank

We offer stainless steel chemicals tankers with different capacities, compartments and baffles.You receive tank semi-trailers in stainless steel 1.4404 (316L) and in accordance with the ADR regulations.

Seamless

Youcan tank trailer sets itself apart by its longevity. We achieve this through a series of optimizations:

• the lowest number of circumferential welding seams

• a tank coating specifically designed for your situation

• a unique automatic welding process

• a seamless connection with the tank cladding due to our own tank bottoms (extremely low tolerances)

Chemical tank containers / LPG trailers (T14, T20, T50, T23) for sale

Some semi-trailers designed to transport gas and other petroleum products. Gas tanker carriers have different structures depending on the type of gas they transport. Liquefied Petroleum Gas (LPG) is heavier than LNG. It can be liquefied through refrigeration or by applying high pressure. Its major components are butane and propane. It remains heavy even when it is heated. LPG can evaporate when heated. Hence, it is transported under high pressure to keep it in liquid. LPG containers include T14, T20, T50, T23, etc.

Chemical Tank Trailer Supplier

Youcan Trailer is a professional semi-trailer manufacturer providing complete semi-trailer solutions for almost all types of trucks on different applications. The company specialized in providing liquid tank trailers, fuel tankers, chemical tankers, bulk cement tank trailers, tipper trailers, stake storage semi-trailers, flatbed semi-trailers, low-bed semi-trailers, container carrier trailers, curtainsider trailers, and other hundreds of products. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!

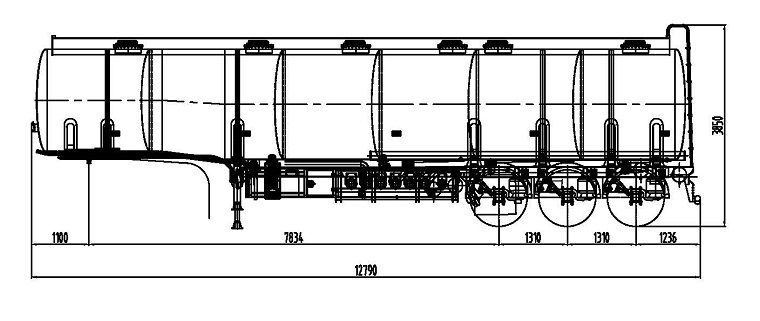

Specification

Name

Youcan Chemical Tank Trailer

Model

YCH9400GY

Capacity:

19.5-35 CBM

Tare Weight

6000 kg-9500 kg

Overall dimension

11500/12200/13000*2500* 3900mm

Number Of Compartment


Tank body:

Construction Material Serial: Stainless Steel



Unloading

system

Discharge box position

Rubber box tube

Unloading hose size

Overfill box



Middle Side/tail side

Round PVC/stainless steel pipe

5.7M discharge hose

Open overflow box/double-cover overflow box/single-cover overflow box



Discharge valve

One per compartment, 6 in total

Pressure Vacuum Vent

One per compartment, roll-over type incorporates with manhole.

Manhole cover

 One per compartment, 20" manhole cover with Fill/emergency vents, pressure vacuum vents, overfill holes and vapour transfer vent hole.

Axle brand and number

2/3/4 Axles, BPW or YOUCAN

Kingpin

50# or 90#

Suspension system

Air suspension with front lifting / Mechanical

Tyre

8/12/16 sets 12R22.5, 315/80R22.5, 385/80R22.5

Landing gear

Jost/Youcan 28T, double speed operation

Brake system

Dual Line braking system , Wabco ABS.

Brake air chamber

Four double Two single

Electrical system

24V,7 pin socket,One set 6-core standard Cable

Light

Tail lamp with turn signal, brake light & reflector

side lamp etc

Tool box

1 set

Spare tire carrier

1-2 sets

Painting

Optional

Packing

Polish with wax before shipping

*The product type and optional equipment can vary depending on your choice.
