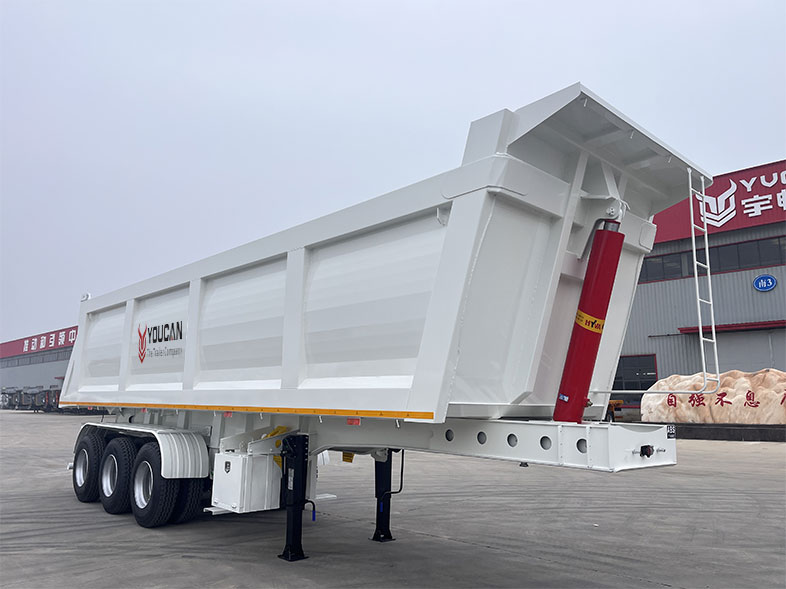

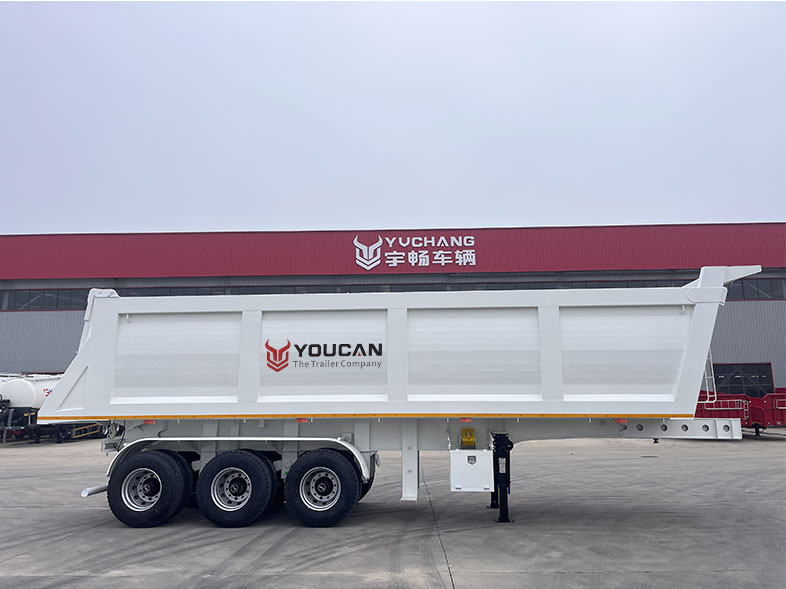

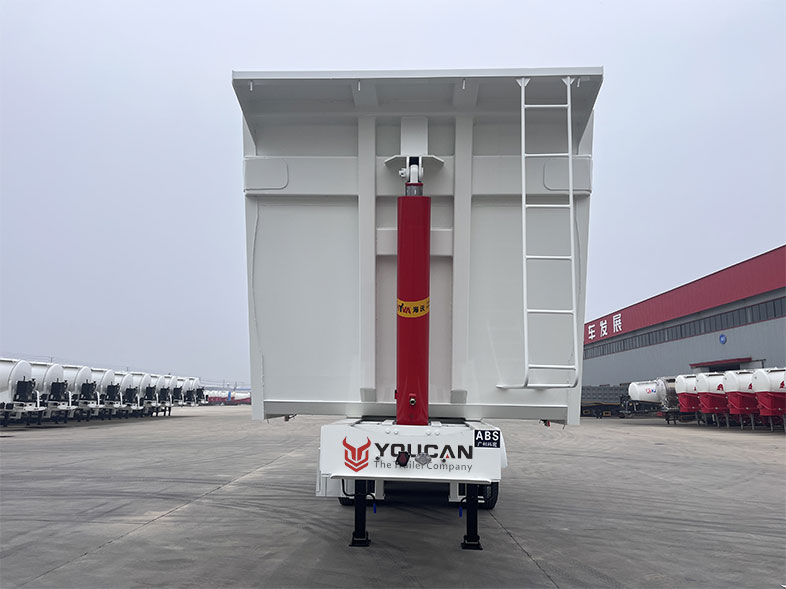

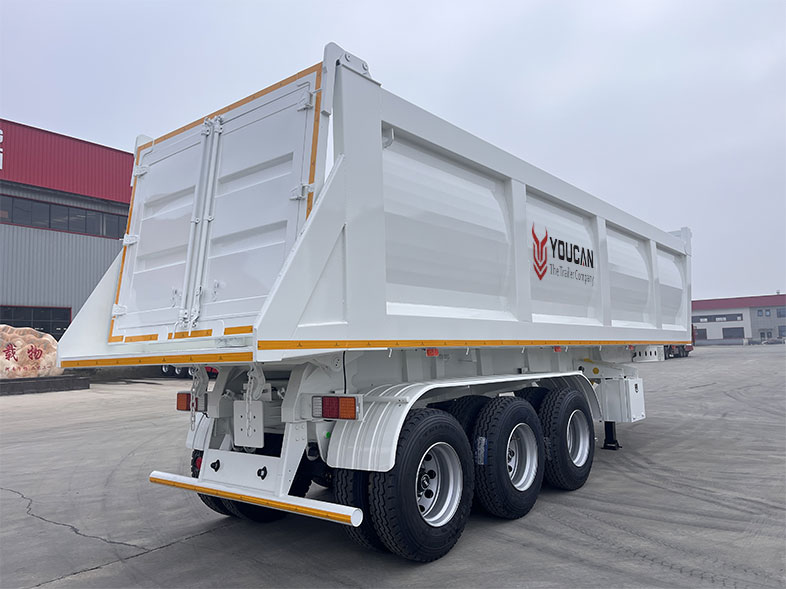

Youcan 30-60 Ton U Shape Rear Dump Semi Trailer
Description
Specification
Reviews(0)

    Overview of Tipper trailer

    According to the product requirements for the users who transport solid aggregate, coal, earthmoving, asphalt, wheat and similar bulk cargoes to the highways, we offer a wide selection of tippers that challenge the most demanding conditions on the truck and trailer product line, which provides great convenience and practicality during unloading. The low centre of gravity of the trailer gives it improved road handling combined with excellent tipping stability.

    The Youcan LIGHT tipper trailers with its low unladen weight is optimised for payload thanks to its high strength steel box body.

    The Youcan SOLID tipper trailers with their high strength steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.

    Features of YOUCAN Tipper trailers

    1.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.

    2. The YOUCAN tipper body is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.

    3. The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be RAL9003 or will on customer demand. The total thickness of the paint work is 120micron.

    4. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.

    5. Optimised body structure prevents goods from sticking.

    Tipper trailer Supplier

    YOUCAN trailer is a professional truck trailer manufacturer providing complete trailer solutions for almost all types of trailers on different applications. The company specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!

    Name

    Youcan 60 Ton U Shape Rear Dump Semi Trailer

    Model

    YCH9401Z  YCH9402Z

    Volume

    30-50m3

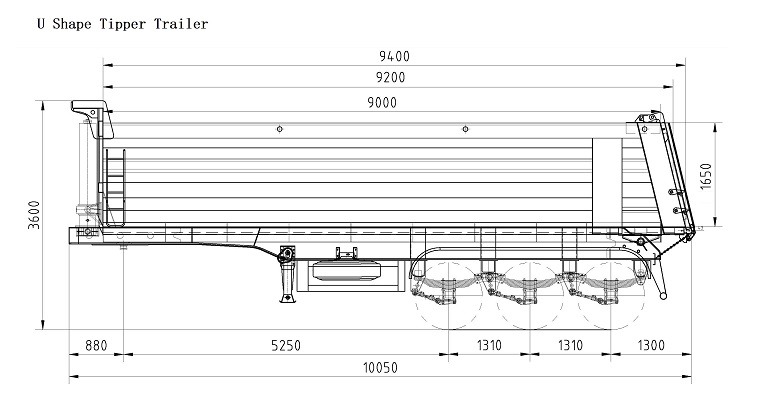

    Overall dimension

    9.7m*2.55m *3.75m

    Loading capacity

    60Ton

    Tank thickness(mm)

     Body is 3-8mm .

    Main beam

    middle plate is 8mm.   Q700

    Axle brand and number

    13T/16T/20T BPW/FUWA,3 Axles

    Kingpin

    50# or 90#

    Steel Spring

    10*13*90mm  10*16*90mm 12*16*120mm

    Suspension system

     Mechanical suspension

    Tyre

    12R22.5 / 12.00R20

    Landing gear

    28T, double speed operation

    ABS Brake System



    Kormee/WABCO brand, 2S2M

    Brake system

    Dual Line braking system ,

    Brake air chamber

    Four double  chamber Two single

    Electrical system

    24V,7 pin socket,One set 6-core standard Cable

    Light

    Tail lamp with turn signal, brake light & reflector,


    side lamp etc

    Tool box

    1 set

    Spare tire carrier

    1 sets

    Painting

    Sand shot blasting process with grit metal. 2 coats of epoxy primer and acrylic finished paint will on customer demand. The total thickness of the paint work is 120micron.

    Packing

    Polish with wax before shipping
