What is a dump semi-trailer
Definition of a Dump Semi-Trailer
A dump semi-trailer is a heavy-duty trailer with an open box on a strong frame and a hydraulic system that tilts the box to unload bulk cargo. It is also called a tipper trailer, an end dump trailer or a dumper semi-trailer. The names change from country to country, but the job is the same: carry loose material such as sand, gravel, stone, coal or ore, then tip it out at the destination in a few minutes without anyone shovelling by hand.
It is built for bulk cargo that can be tipped, so it is a common choice on construction sites, quarries, mines and farms. It is not meant for fragile, palletised or liquid cargo, which need a flatbed, a van trailer or a tanker.
How a Dump Semi-Trailer Works
Think of it as three systems working together.
The box. This is the open cargo body that holds the material. It is built from thick steel plate and supported by cross members so it can take the weight and the hard impact of loading from excavators and loaders.
The hydraulic system. A hydraulic cylinder, driven by a pump connected to the tractor, pushes the front of the box upward, or in the case of a side tipper, one side of it. As the box rises, the load slides out under gravity.
The frame and running gear. Strong main beams, axles, suspension and a kingpin carry the load and connect the trailer to the tractor. Because the trailer must stay stable while the box is lifting a full load, the frame has to be stiff and the axles well spaced.
When the driver starts to tip, the weight shifts toward the rear (or the side) and the trailer must stay steady. That is why quality dump trailers use thick main beams, well-fitted axles and a wide stance, and why the driver should always tip on firm, level ground.
Rear Dump vs Side Dump
There are two main ways to tip, and the right one depends on what you carry and where you unload.
Rear Tipper (End Dump)
The front of the box rises and the cargo slides out of the back. This is the most common design, and it suits material that flows freely, such as sand, gravel, stone, coal and construction waste. Rear tippers are generally kept to about 12 metres in length, so they remain easy to handle.
Because the load slides out behind the trailer, you need clear space and enough height at the unloading point.
Side Tipper
The box lifts to one side and the cargo drops out beside the trailer. Side tippers are useful when you cannot unload backwards, for example at narrow sites, or when material has a small natural angle of rest and does not slide easily. Side tippers use hydraulic pumps and motors to lift one side, and they are built with thick steel plate to cope with the stress of side lifting.
A side tipper can often carry more than a comparable rear tipper, which helps on routes where weight rules allow it.
Drawbar Tipper
A drawbar trailer is a full trailer pulled behind a truck, not a semi-trailer on a fifth wheel. Some are built to tip as well. They are used for aggregates, coal and earthmoving, and they suit operators who want to move more material per trip with a truck-and-trailer combination.
Box Shapes: U-Shape and Rectangular
The shape of the box matters more than most buyers expect.
A U-shape box has rounded lower corners. Cargo slides out smoothly as the box rises, so less material gets stuck, and the shape is also stronger against bending and impact. This is a popular choice for sand, gravel, coal and ore.
A rectangular box has flat sides and square corners, which gives more usable volume and is easier to load with a wide variety of materials. It can leave some material in the corners, so it is better for cargo that flows well.
Some side tippers are available in both "dustpan" and rectangular shapes, so you can choose based on your cargo.
What Dump Semi-Trailers Carry
Dump semi-trailers are built for bulk materials that can be tipped. Typical loads include:
Sand, stone and gravel for construction and road building
Coal, ore and other mining output
Construction waste and earthmoving soil
Grain, wheat and similar agricultural products
Other bulk building materials
Key Parts to Look At When You Buy
Two dump trailers can look the same from across the yard and perform very differently under load. These are the areas that matter.
Main beams. The main beams carry the whole load. A high-strength steel such as Q345B is common and gives a good balance of strength and cost. Ask for the plate thicknesses on the upper, middle and lower sections, because these decide how well the frame resists bending.
Floor and side plates. The floor takes the biggest impact from loaders, rocks and heavy lumps, so it should be thicker than the side plates. Thin plate may save money at purchase but wears through quickly in quarry or mining service.
Hydraulic cylinder and pump. The cylinder must lift a full load smoothly and hold it steady. Check the cylinder stages, the lifting angle and how the system connects to the tractor.
Axles and tyres. More axles spread the load and make the trailer more stable, but they also add weight and cost. Choose well-known axle brands so that parts are easy to find in your region.
Suspension. Mechanical suspension is simple, robust and easy to repair, which is a good fit for rough ground. Air suspension is smoother and protects the cargo and the frame on better roads, but it needs more careful maintenance.
Kingpin and landing gear. These carry the front weight and connect the trailer to the tractor, so they must be strong and compatible with your fifth wheel.
Example: A 3-Axle U-Shape Tipper
To make this concrete, here is how one common configuration looks in practice. Our 3-axle hydraulic U-shape tipper trailer is built for sand, gravel, coal and other bulk materials. It uses three axles from well-known brands, Q345B main beams, a 6 mm floor plate and 4 mm side plates, and it offers either mechanical suspension or air suspension. The box holds 30 to 40 cubic metres, which is roughly 30 to 80 tons depending on the cargo, and the trailer's own weight is about 12 tons. A 2-inch or 3.5-inch kingpin is available to match your tractor.
How to Choose the Right Dump Semi-Trailer
Run through these questions before you buy.
What will you carry? Free-flowing material suits a rear tipper. Material that sticks or sits at a low angle may need a side tipper or a U-shape box.
How much weight per trip? Check the legal limits of your country, the axle ratings and the tractor's pulling power.
Where will you unload? Measure the height, width and space at the unloading point. Side tipping can solve tight-space problems.
What are the roads like? Rough or unpaved roads favour simple mechanical suspension and strong frames. Good roads allow air suspension and lighter builds.
What is your tractor? Match the kingpin, hydraulic connections and braking system.
Who will service it? Choose components that your local workshop can handle.
You can browse our full range of tipper trailers by capacity, from about 30 tons up to heavy-duty models, or look at the side tipper range if your sites call for side dumping.
Safety and Maintenance Tips
A dump trailer is only as safe as the way it is used. A few habits protect both people and equipment.
Tip on level, firm ground. Soft or sloping ground is a common cause of tip-overs.
Never tip while moving. Stop completely, brake and then raise the box.
Keep clear of the box and power lines. A raised box can hit overhead cables.
Do not overload. Overloading strains the hydraulic system and the frame, and may be illegal.
Check hydraulic hoses and fittings. Look for leaks, cracks and wear before each shift.
Grease pivot points and inspect welds. Pay special attention to the hinge area and the cylinder mounts.
Clean out the box. Stuck material adds weight and can corrode the steel.
YOUCAN: Your Trusted Semi Trailer Manufacturer in China
YOUCAN Trailer is the semi-trailer brand of Henan Yuchang Vehicle Manufacturing Co., Ltd., based in Shangqiu City, Henan Province, China. The company has been building trailers since 1999 and works from a 100,000 square metre manufacturing facility. In 2023 it was recognised as a National High-Tech Enterprise for technical innovation.
Our trailers are shipped to customers in the Middle East, Africa, South America, Southeast Asia and Central Asia, and we serve buyers in more than 50 countries. Our guiding values are quality, partnership, responsibility and continuous improvement, and we believe that long-term business is built on reliable products and honest cooperation. You can read more about the company on our about page.

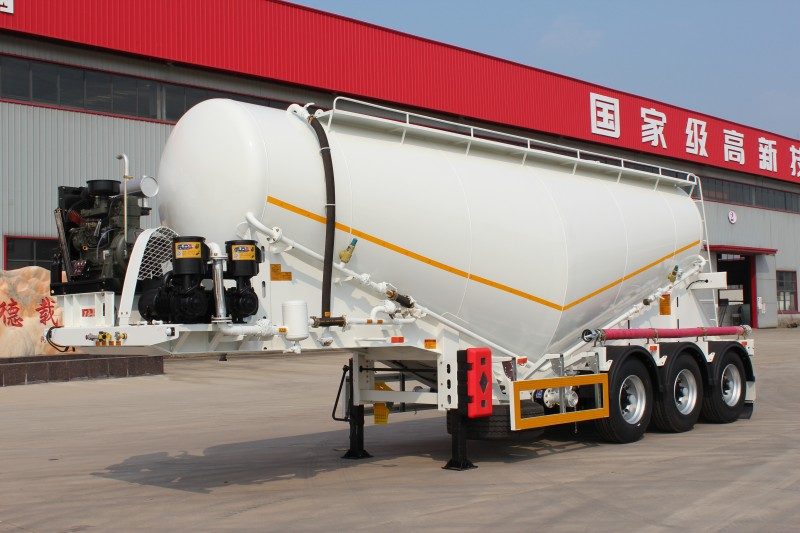

Beyond dump semi-trailers, we also build flatbed, lowbed, tank, bulk cement and general cargo trailers.
Planning a new project or adding to your fleet? Send us your cargo type, target payload, destination country and tractor details through our contact page. Tell us what you carry, and we will build the trailer to match. Our team will reply within 24 hours.
Frequently Asked Questions
Is a dump semi-trailer the same as a tipper trailer?Yes. Dump semi-trailer, tipper trailer, end dump trailer and dumper semi-trailer all describe the same type of equipment.
What is the difference between a rear tipper and a side tipper?A rear tipper lifts the front of the box and unloads out of the back. A side tipper lifts one side and unloads beside the trailer, which helps in tight spaces or with materials that do not slide easily.
Why choose a U-shape box?The rounded shape lets material slide out cleanly and resists bending, so less cargo sticks and the box lasts longer under heavy loading.
How many axles do I need?It depends on your weight limits and cargo. More axles spread the load and add stability, but they also add cost and weight. Tell us your target payload and country, and we will suggest a suitable layout.
Can the trailer be customised?Yes. Capacity, axle count, suspension, box shape and tractor connections can be adjusted to your requirements.
