30-80Tons 3 Axles Youcan lowbed Semi-Trailer for Commercial Truck

Youcan 3 Axle Lowbed Semi Trailer (also called lowboy semi-trailer) is a type of specialized heavy-duty trailer designed to transport oversized and heavy machinery, equipment and vehicles, such as construction equipment, transformers, cranes, and tractors. It is characterized by its low deck, with a lower center of gravity, which ensures better stability and improved safety during transportation.

Description
Specification
Reviews(0)

    What is 3 Axle Lowbed Semi Trailer?

    A 3 Axle Lowbed Semi Trailer is a type of heavy-duty, specialized trailer designed for the transportation of oversized, tall, and heavy-weight cargo, such as construction equipment, large machinery, transformers, and heavy vehicles. The defining feature of a lowbed semi-trailer is its low deck height, which results in a lower center of gravity. This design ensures better stability, safety, and ease of loading during transit.

    The '3 Axle' aspect of the semi-trailer refers to the presence of three axles on the trailer, providing better weight distribution and handling capacity compared to two-axle trailers. These three axles contribute to increased load capacity while ensuring improved maneuverability and safety during transportation.



    Features of 3 Axle Lowbed Semi Trailer

    The 3 Axle Lowbed Semi Trailer is known for its unique design and features that make it well-suited for transporting heavy and oversized cargo. Key features of a 3 Axle Lowbed Semi Trailer include:

    Low deck height: The low deck height of the lowbed semi-trailer reduces the center of gravity, ensuring better stability, safety, and ease of loading for oversized and tall cargo.

    Three axles: Equipped with three axles instead of two, the trailer provides better weight distribution and a higher load capacity, resulting in improved handling, stability, and safety during transportation.

    Strong and durable construction: The trailer's frame and chassis are typically made from high-strength steel, ensuring durability, increased payload capacity, and resistance to harsh road and weather conditions.

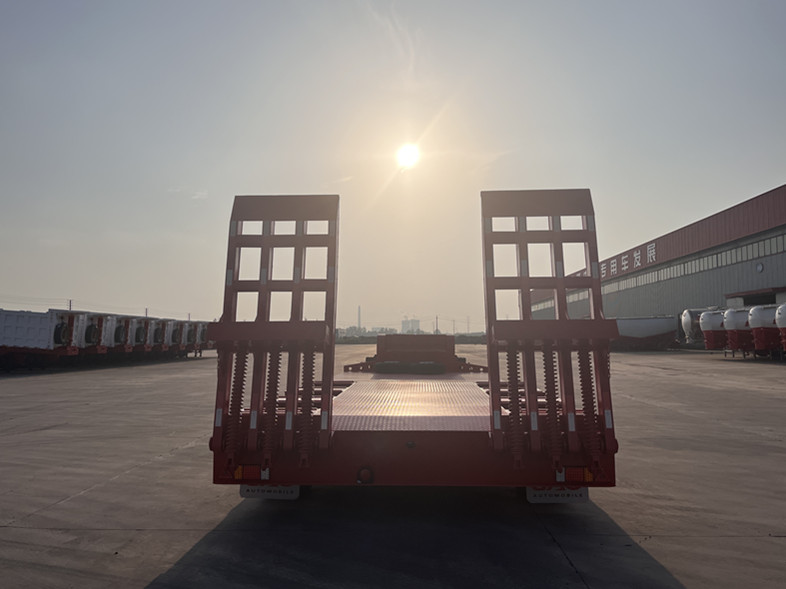

    Ramps: Many lowbed semi-trailers come with folding or detachable ramps, which facilitate the loading and unloading of heavy vehicles and machinery onto the bed of the trailer.

    Outriggers: Some 3 Axle Lowbed Semi Trailers are equipped with outriggers, or supports, extending from the trailer's sides. These outriggers provide additional stability and support for wider cargo, enhancing overall safety during transportation.

    Suspension and braking systems: Advanced suspension and braking systems, often including air suspension and anti-lock braking systems (ABS), improve handling, ride quality, and safety during heavy and oversized cargo transportation.

    Customization options: Lowbed semi-trailers can be customized to meet specific requirements, such as additional lashing points, a removable gooseneck, extendable decks, or additional axle configuration, to cater to unique load handling needs.

    Compatibility: The 3 Axle Lowbed Semi Trailer is designed to be universally compatible with various towing vehicles, such as trucks and tractors, facilitating easy coupling and maneuverability.

    The combination of these features makes the 3 Axle Lowbed Semi Trailer a versatile, reliable, and essential transportation solution for industries that deal with heavy, oversized, or uniquely shaped cargo. Its design effectively addresses common challenges faced during the transportation of such loads, ensuring a safe and efficient journey.



    How to purchase 3 Axle Lowbed Semi Trailer?

    To purchase a 3 Axle Lowbed Semi Trailer, follow these steps:

    Research: Begin by researching manufacturers and suppliers that specialize in producing lowbed semi-trailers. Browse their websites and product catalogs to get an idea of their product ranges, quality standards, and pricing.

    Compare: Compare different manufacturers and suppliers based on factors such as the trailer's design, build quality, materials used, features, customization options, and price. Consider reading customer reviews and testimonials to get an idea of their reliability and user satisfaction.

    Identify your requirements: Make a list of your specific requirements, such as the intended use of the trailer, payload capacity, any particular customization options (e.g., removable gooseneck, extendable deck), and your budget.

    Contact suppliers: Reach out to the shortlisted manufacturers or suppliers, either via their websites, email, or phone. Discuss your requirements and preferences with their sales representatives and ask for quotes based on the trailers that meet your criteria. Inquire about any additional services they might offer, such as after-sales support, warranties, and shipping.

    Evaluate quotes: Evaluate and compare the quotes received based on factors like price, quality, features, and customization options available. Also, consider the supplier's reputation, customer service, after-sales support, and warranty policies.

    Make a decision: Based on all the information gathered, select the supplier that offers the best overall deal in terms of product quality, features, price, and services.

    Place an order: Once you have chosen a supplier, proceed with the ordering process by providing your shipping address, payment terms, and any other necessary details. Confirm the delivery time and any additional charges for shipping.

    Arrange payment: As per the payment terms agreed upon with the supplier, make the required advance or full payment.

    Shipping and delivery: Coordinate with the supplier to ensure timely shipping and delivery of the trailer. Monitor the progress of the shipping process by staying in touch with the supplier.

    Inspect and test: Upon receiving the trailer, conduct a thorough inspection for any visible defects or damages, and subsequently, test the trailer's functionality. If any issues arise, contact the supplier immediately to discuss possible solutions or resolve the matter accordingly.

    By following these steps, you can ensure a smooth purchasing process for a 3 Axle Lowbed Semi Trailer that meets your unique requirements and expectations.

    Price of 3 Axle Lowbed Semi Trailer

    The price of a 3 Axle Lowbed Semi Trailer can vary greatly depending on factors such as the manufacturer, materials used, specific features, customization options, and the region where the trailer is being purchased. As a result, it is difficult to give an exact price range.

    However, as a rough estimate, the price of a 3 Axle Lowbed Semi Trailer may range anywhere between10000 and 40,000 (USD) worldwide. Trailers manufactured in China or other lower-cost production countries tend to be more affordable, while those built in the United States or European countries are generally priced higher due to higher production costs and more advanced features.

    To get accurate pricing information tailored to your specific requirements, it's best to contact manufacturers or suppliers directly, as they can provide detailed quotes based on factors such as the model in question, any additional options or customizations, and applicable taxes, shipping, and after-sale services.

    Make sure to obtain multiple quotes from different suppliers to compare prices, product quality, features, and overall value, to help you make a well-informed decision when purchasing a 3 Axle Lowbed Semi Trailer.

    Suppliers of 3 Axle Lowbed Semi Trailer

    There are numerous suppliers and manufacturers of 3 Axle Lowbed Semi Trailer worldwide. To locate the right supplier for your needs, consider your specific requirements and location, and then research the most suitable options. Youcantrailer is a professional 3 Axle Lowbed Semi Trailer manufacturer with 25 year-experience in providing high quality and durable 3 Axle Lowbed Semi Trailer for Tanzania, Mozambique, Malawi, Zimbabwe, Zambia, Mali, Ghana, Nigeria, Namibia, Congo, Guinea, Guyana, Senegal, Dominican, Costa Rica, Jamaica, Russia, Mexico, etc


    3 Axle Lowbed Semi Trailer Specifications

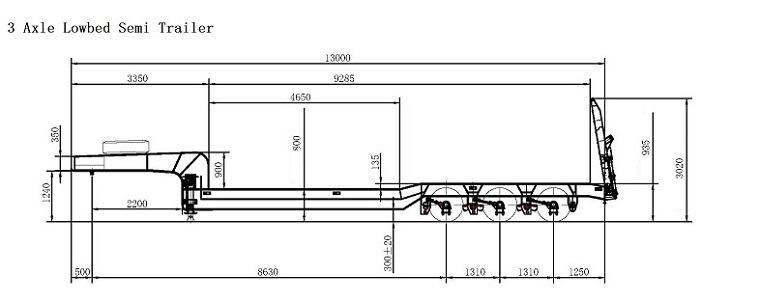

    Lowbed设计图纸

    Manufacturer

    Youcan Trailer

    Axles

    3 axles, BPW/SAF/FUWA Brand

    3 Axle Lowbed Semi Trailer dimensions

    13000×3500×3020 mm

    3 Axle Lowbed Semi Trailer capacity

    60 ton

    Weight

    10000KG ±200KG

    Material

    Main beams Q345B, upper flange:14mm, middle:10mm, down:16mm

    King Pin

    2 inch or 3.5-inch JOST Brand

    Chassis

    6mm, carbon steel

    Suspension

    Mechanical, airbag suspension

    Tire

    11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/ Bridgestone brand
