3 Axles Youcan Removable Gooseneck Trailer

Youcan front loading low bed trailers for transport excavator and construction equipment, large machinery transportation. With our increased cylinder stroke you can raise the trailer chassis as high as possible off the ground depending on the truck fifth wheel height. We can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton.


    The Youcan Trailer was founded in 1999. Rich experiences of producing Lowbed trailers for all types of mechanical equipment, road construction equipment precisely tailored to your fleet requirements. The low centre of gravity of the trailer gives it improved road handling combined with excellent stability.

    Features of Youcan Lowbed trailers

    1.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.

    2. The Youcan Flatbed is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.

    3. The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be RAL9003 or will on customer demand. The total thickness of the paint work is 120micron.

    4. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.

    Applications and Features of Lowbed semi-trailers

    The lowbed semi-trailer series products are suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steels. They are widely used, efficient and fast. The whole vehicle adopts advanced computer-aided design software, and the optimization design is flexible and diverse, and the frame bearing surface is designed according to user requirements to meet the transportation of various special goods.

    The main plane of the frame and platform is low, which ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large-scale equipment and steel.

    The Youcan trailer is a removable or detachable gooseneck trailer, and it has a low center of gravity, good stability, high strength and other characteristics which improve the loading capacity. Some equipment installed in the gooseneck of the semi-trailer can be removed or connected by workers, so construction machinery can unload from the front of the semi-trailer. This trailer is mainly suitable for large construction machinery. It solves the issue of the angle of the ladder on a low bed trailer being too great. This is a reliable product which helps you to save money.


    Lowbed trailers are used to transport heavy cargo is different industries. Here are most common uses of the heavy-duty trailers.

    Heavy vehicles: Vehicle manufactures use lowbed trailers to transport heavy vehicles from one showroom to another. The transporters are used to move the vehicles from the port to showrooms and sometimes to clients.

    Some of the heavy vehicles that low bed trailers transport include buses, tractors, and special vehicles. A lowbed trailers can transport stacks of small vehicles at the same time.

    Rail vehicles: There are different categories of rail vehicles including road-rail vehicles, goods wagon, locomotives, and rail motor coach among others.

    The common characteristic of these vehicles is that they are heavy and bulky. Lowbed trailers are among the best ways to transport rail vehicles.

    Mining machinery: Mining requires heavy machinery for drilling and transporting materials including crude oil and minerals. The machinery is assembled offsite and then transported to the mining sites using lowbed trailers.

    The heavy haulers are preferred because the structure of mining machinery. Mining equipment is perhaps the heaviest cargo that machinery manufacturers transport on the road.

    Forestry machinery: The forestry industry uses heavy machinery as well. Heavy equipment is required to cut down and transport logs. Sometimes the logs are processed into timber and other by-products at the site before transporting the products.

    The machinery is manufactured assembly halls or imported before it is transported to the forest. Lowbed trailers are used to move the forestry machinery from the assembly to the forests.

    The wheels of the trailers can navigate the rough terrain in forests. Lowbed trailers are also used to move forestry machinery from one forest to another or back to assembly halls after a project is completed.

    Agricultural machinery: Agriculture is another field that uses heavy machinery. The machinery is mostly used for large-scale farming. Such large farms are located far from towns and cities.

    The major agricultural machinery that low bed trailers transport includes loaders, excavators, bulldozers, cranes, and pavers. The heavy trailers can navigate muddy agricultural farms and move machinery from one farm to another.

    Construction: Lowbed trailers are used in the construction industry as well. The heavy duty vehicles are commonly used in the construction of roads and bridges.

    Some construction equipment and blocks cannot be transported with the normal semi-trailers. Low bed trailers are used to transport concrete blocks to the construction sites.

    The blocks are not only heavy but also large. Constructors use the trailers to transports materials in bulk such as cement and beams

    Windmill components: The components of windmills are usually assembly in a factory and then transported to their sites. Similar to other heavy cargo, the components are wide and heavy.

    The components cannot fit on a closed trailer because of their design and structure. Lowboy trailers are efficient way of transport these components to their site.

    Low bed trailers are not only used to transport machinery and vehicle but all categories of heavy loads. For instance, finished products from these industries are packed in containers and stacked on lowboys for transportation.

    The transporters can move stacks of heavy containers without toppling over. Hence, many manufacturers prefer to transported finished products to retailers with lowbed trailers.

    Advantages of lowbed trailers

    Lowbed trailers are widely used in different sectors because of their advantages over other heavy transporters. The main advantages are outlined below.


    The deck of the lowboys is extremely compared to other heavy haulers. A low-lying deck means that the center of gravity is low. Hence, low bed trainers are more stable when transporting heavy cargo than trailers.

    One of the ways of increasing stability is widening the base of support. This is possible with low bed trailers because the cargo plane width can be widened. The trailers remain stable on the road irrespective of the height and weight of the cargo.


    Lowbed trailers are specifically designed to carry heavy loads. The trailers are made of high-strength materials that can withstand pressure of up to 700mpa.

    In addition, the height of the main beams can be as high as 550mm. Hence, manufacturers are assured of the safety of their equipment and products during the transportation process. Below is a picture of the heavy beams that are used to make lowbed trailers:

    A full discussion of all components and materials used to make lowbed trailers follows in Chapter 2.2.1.

    Lowbed trailer Supplier

    Youcan Trailer was founded in 1999. As a professional truck trailer manufacturer, Youcan Trailer provides complete trailer solutions for all types of trailers on different scenarios. We specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products with 23 Years of experiences. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!

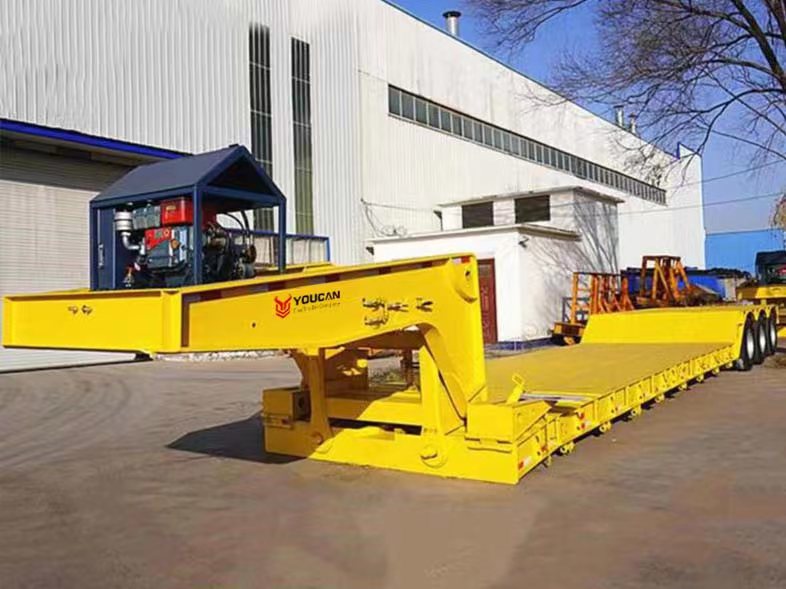

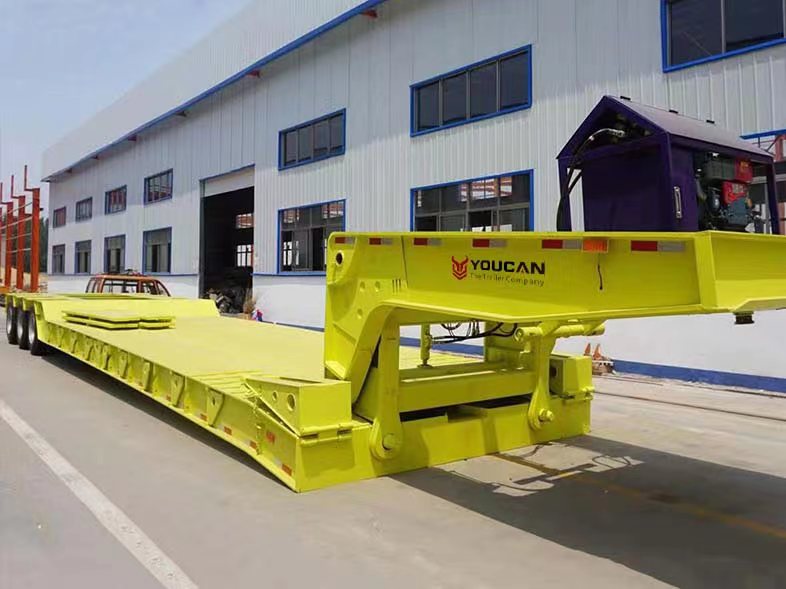

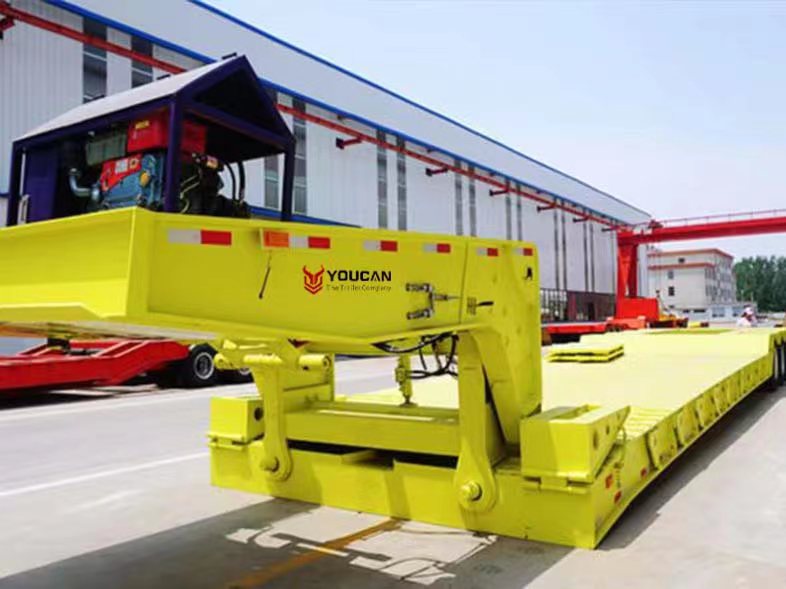

    Youcan Removable Gooseneck Trailer



    Overall dimension

    15800mm x 3000mm x 2500mm

    Loading capacity


    Bottom floor plate thickness(mm)

    Antiskid design 5mm

    Main beam

    Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.


    Mechanical/Hydraulic ramp with spring

    Bottom Platform

    5mm thick, checkered plate

    Axle brand and number

    13T/16T/20T BPW/FUWA,3 Axles


    50# or 90#

    Steel Spring

    10*13*90mm  10*16*90mm 12*16*120mm

    Suspension system

     Air /Mechanical suspension


    8.25R20/11R22.5 / 11.00R20

    Landing gear

    Factory standard leg


    ABS Brake System


    Kormee/WABCO brand, 2S2M

    Braking system

    Drum brake

    Brake air chamber

    Four double  chamber Two single

    Electrical system

    24V,7 pin socket,One set 6-core standard Cable


    All Led.

    Tail lamp with turn signal, brake light & reflector,

    Tool box

    1-2 set

    Spare tire carrier

    1-2 set


    Sand shot blasting process with grit metal. 2 coats of epoxy primer and acrylic finished paint will on customer demand. The total thickness of the paint work is 120micron.


    Polish with wax before shipping
