Yuchang Curtainside Semi-trailer
The Yuchang Curtainsider with flexible and load securing options can be precisely customised to match your transport business.

Description

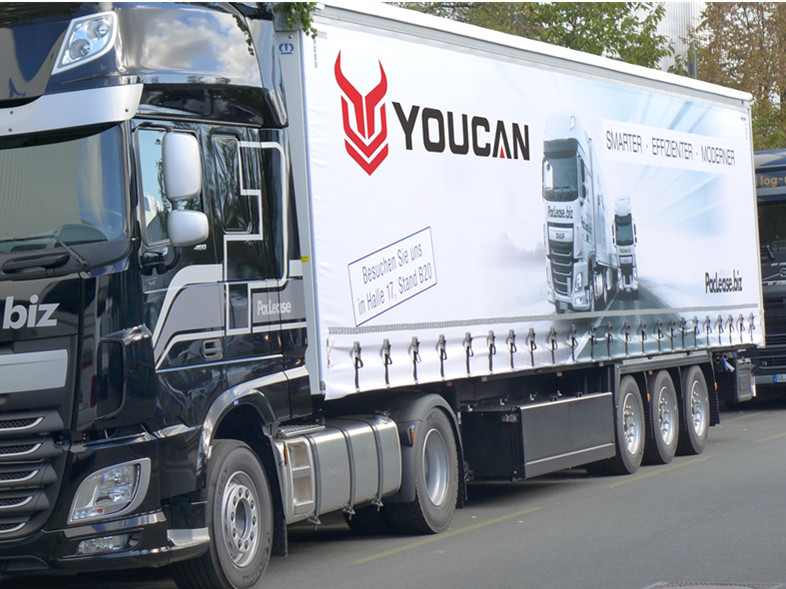

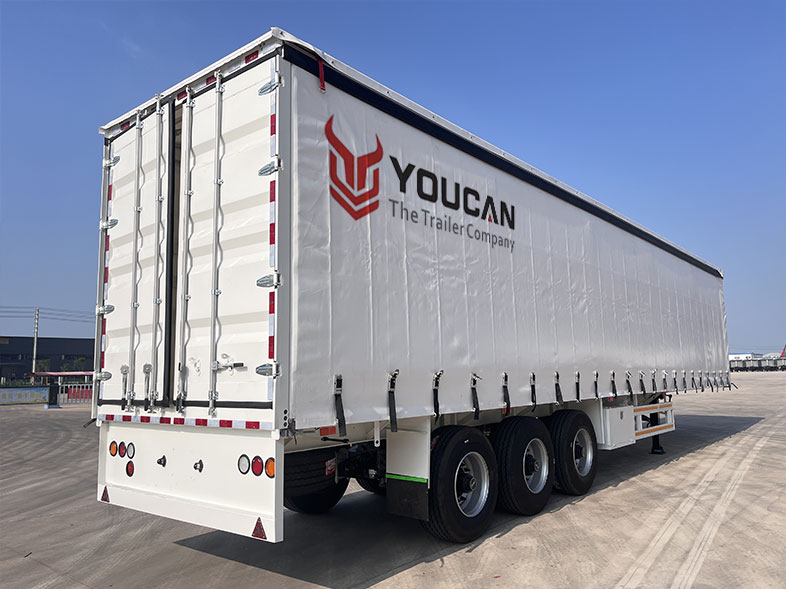

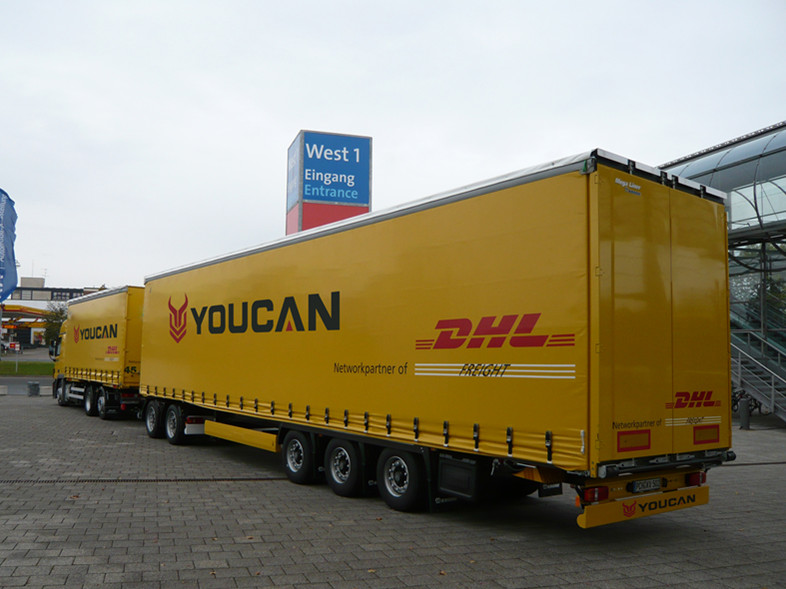

Overview of Yuchang Curtainsider semi-trailer

Curtainsider is always the right vehicle for all your general cargo transport work .The Yuchang Curtainsider semi-trailer provides the right equipment for majority of road tasks including paperbeverages and heavy steel rolls.

The side curtain can open and slide to the front or rear end of the semi-trailer, the retaining railings can be removed, the sliding column can also slide to the front end or the rear end of the half trailer, convenient for side-faced unloading.

Features of Youcan Curtainsider semi-trailer

1.The Yuchang Curtainsider semi-trailer with powerful curtain offers a body without support laths for faster loading and unloading times.

2.Wire reinforcement built into the tarpaulin increases its strength and improves anti-theft protection.

3.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.

4.The Yuchang Curtainsider semi-trailer stands out as being particularly lightweight with higher payload or lower fuel consumption.

5.The Yuchang Curtainsider semi-trailer is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.

6.The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be on customer demand. The total thickness of the paint work is 120micron.

7.Increased load bearing capacity:10% more distributed load.

Curtainsider semi-trailer Supplier

The Yuchang Trailer was founded in 1999, with rich experiences of producing semi-trailers and providing complete trailer solutions for different applications. The company specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products with 23 Years of experiences. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!


Specification

Name

Yuchang Curtainsider semi-trailer

Model

YCH9400CL

Overall dimension

13.75/14.9/16.5m *2.55m4m

Loading capacity

30-50Tons

Floor plate thickness(mm)

Antiskid design 1.5mm-3mm

Or the 28mm plywood floor is available.

Lashing eye

End-to-end lashing eyes in the outer frame with pallet stop rails screwed on.

Main beam

middle plate is 6/8/10mm.   Q700

Axle brand and number

10T/12T/13T/ BPW/FUWA, 2/3/4 Axles

Kingpin

50# or 90#

Steel Spring

4*22*90 10*13*90mm  10*16*90mm

Suspension system

 Air /Mechanical suspension

Tyre

11R22.5 / 11.00R20,12R22.5 / 12.00R20

Landing gear

28T, double speed operation

ABS Brake System



Kormee/WABCO brand, 2S2M

Braking system

Drum brake

Brake air chamber

Four double  chamber Two single

Electrical system

24V,7 pin socket,One set 6-core standard Cable

Light

All Led.

Tail lamp with turn signal, brake light & reflector,



Tool box

1-2 set

Spare tire carrier

1-2 set

Painting

Sand shot blasting process with grit metal. 2 coats of epoxy primer and acrylic finished paint will on customer demand. The total thickness of the paint work is 120micron.

Packing

Polish with wax before shipping
