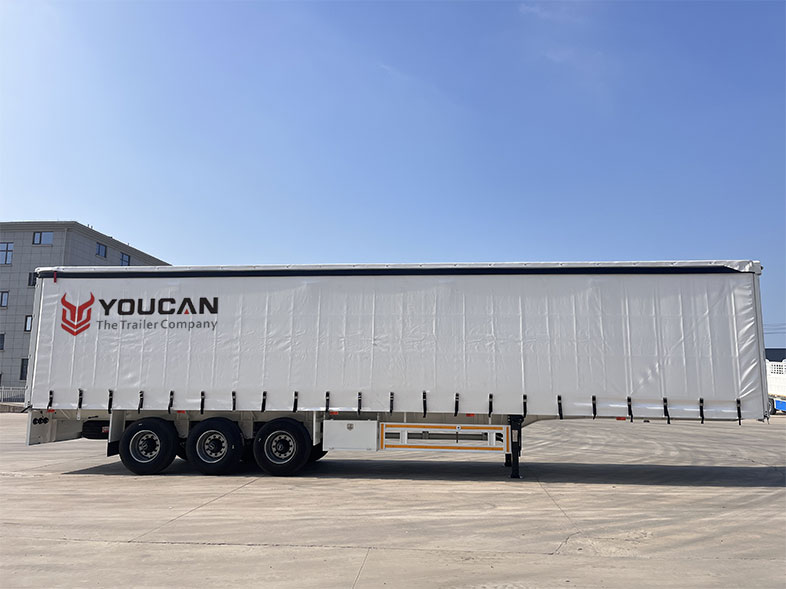

Youcan Curtainside Semi-trailer
Description
Specification
Reviews(0)

    Overview of Youcan Curtainsider semi-trailer

    The chassis, the column, the beam, and the curtain form the main body of the side curtain, and the curtains on both sides can be quickly opened, and the loading and unloading of the goods are very convenient.

    Due to its efficient transportation efficiency and multi-functional solid-state equipment, the side curtain car has great advantages in six transportation fields such as multimodal transport, household appliances, beverages, paper rolls, auto parts, plates, and packaged goods.

    Features of Youcan Curtainsider semi-trailer

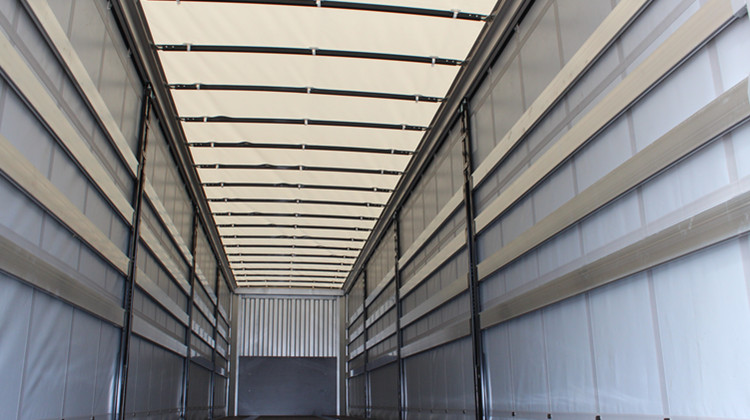

    1.The Youcan Curtainsider semi-trailer with powerful curtain offers a body without support laths for faster loading and unloading times.

    2.Wire reinforcement built into the tarpaulin increases its strength and improves anti-theft protection.

    3.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.

    4.The Youcan Curtainsider semi-trailer stands out as being particularly lightweight with higher payload or lower fuel consumption.

    5.The Youcan Curtainsider semi-trailer is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.

    6.The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be on customer demand. The total thickness of the paint work is 120micron.

    7.Increased load bearing capacity:10% more distributed load.

    Curtainsider semi-trailer Supplier

    The Youcan Trailer was founded in 1999, with rich experiences of producing semi-trailers and providing complete trailer solutions for different applications. The company specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products with 23 Years of experiences. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!

    Name

    Youcan Curtainsider semi-trailer

    Model

    YCH9400CL

    Overall dimension

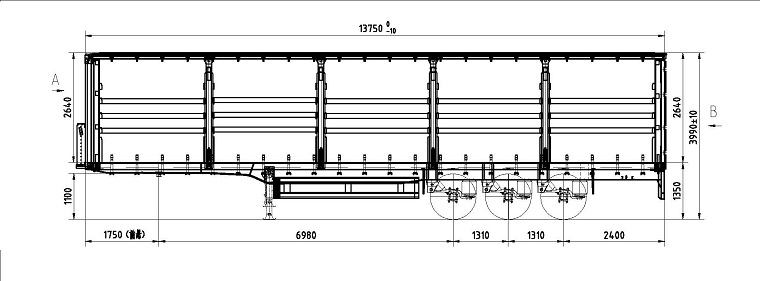

    13.75/14.9/16.5m *2.55m4m

    Loading capacity

    30-50Tons

    Floor plate thickness(mm)

    Antiskid design 1.5mm-3mm

    Or the 28mm plywood floor is available.

    Lashing eye

    End-to-end lashing eyes in the outer frame with pallet stop rails screwed on.

    Main beam

    middle plate is 6/8/10mm.   Q700

    Axle brand and number

    10T/12T/13T/ BPW/FUWA, 2/3/4 Axles

    Kingpin

    50# or 90#

    Steel Spring

    4*22*90 10*13*90mm  10*16*90mm

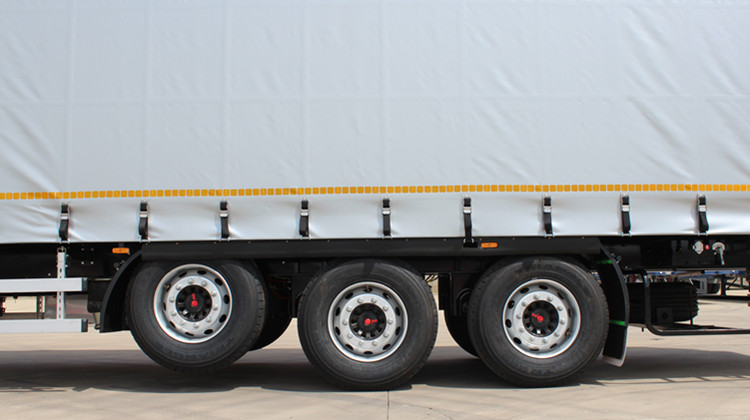

    Suspension system

     Air /Mechanical suspension

    Tyre

    11R22.5 / 11.00R20,12R22.5 / 12.00R20

    Landing gear

    28T, double speed operation

    ABS Brake System



    Kormee/WABCO brand, 2S2M

    Braking system

    Drum brake

    Brake air chamber

    Four double  chamber Two single

    Electrical system

    24V,7 pin socket,One set 6-core standard Cable

    Light

    All Led.

    Tail lamp with turn signal, brake light & reflector,



    Tool box

    1-2 set

    Spare tire carrier

    1-2 set

    Painting

    Sand shot blasting process with grit metal. 2 coats of epoxy primer and acrylic finished paint will on customer demand. The total thickness of the paint work is 120micron.

    Packing

    Polish with wax before shipping
