Description

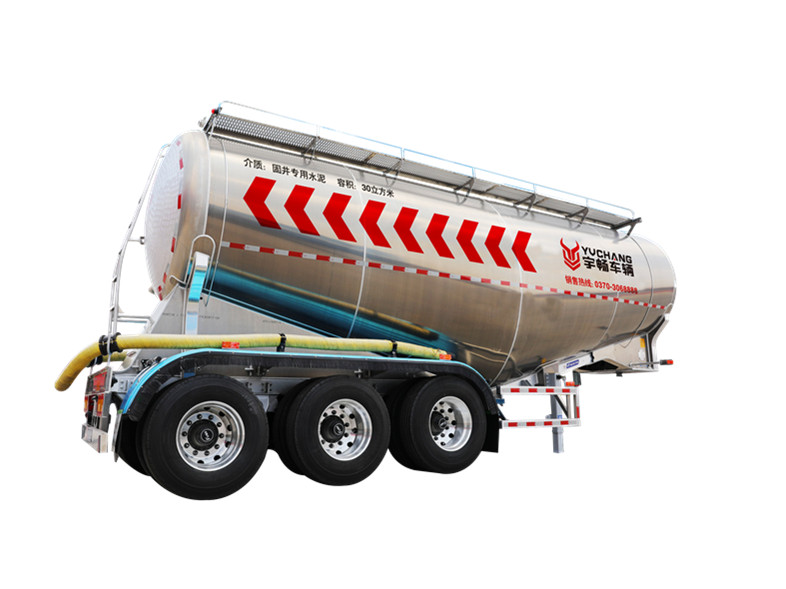

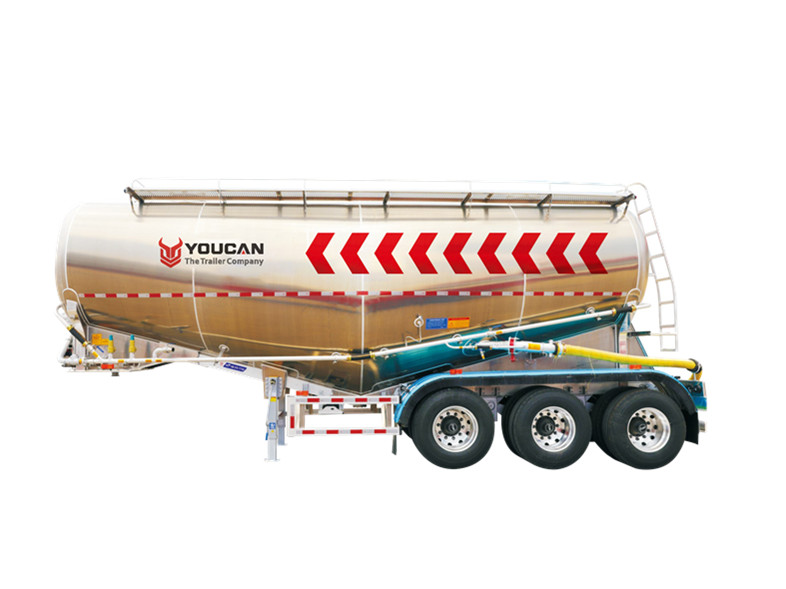

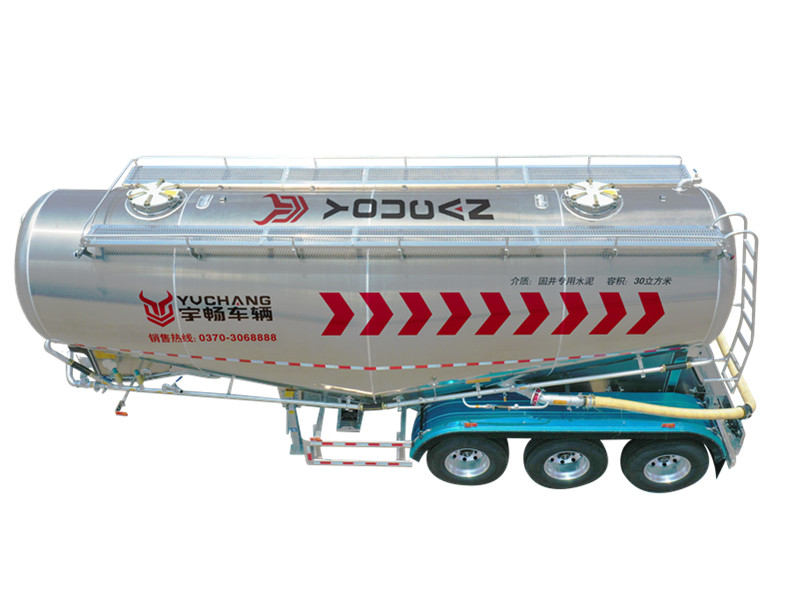

Overview of 3-Axles Aluminum bulk cement tank trailer

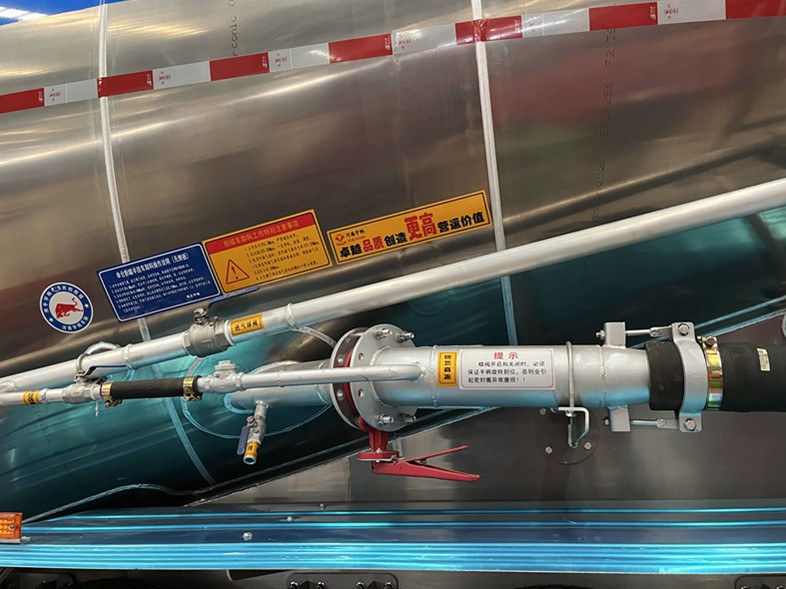

Bulk Cement Tank trailer is for transporting bulk material (bulk cement), according to the different nature of the transport material, volume is generally between 28-50 cubic meters. The vertical unloading height is more than 15m, and the horizontal conveying distance can be more than 10m. And Bulk Cement Tank trailer is the use of self-provided motor power by diesel engine and air compressor, compressed air through a pipe into the sealed tank bottom air chamber, made the cement in the fluidized bed on the suspension to flow, when the tank pressure reaches rating, open the discharge butterfly valve, fluidization cement through the pipe flow and transport
Features of Yuchang Aluminum Bulk Cement Tank tank trailer
1. Made of aluminum magnesium alloy, 1-2 tons Lighter than carbon steel powder tank trailer.
2.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.
3.The tank body adopts high strength material plate, the interior adopts 15 degree fluidized bed design, no sliding material plate structure, to meet the needs of medium loading and unloading.
4.The frame adopts high strength ALUMINUM plate and the latest lightweight structure design to ensure the strength of the frame while reducing the weight to the lightest.
5. The tank body is automatically welded by an advanced large-scale special welding machine.
6. The Youcan tank body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
7. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.
Aluminum Bulk Cement Tank trailer Supplier
Yuchang Trailer is a professional semi-trailer manufacturer providing complete trailer solutions for almost all types of trucks on different applications. The company specialized in providing tank trailers, bulk cement semi-trailers, dump semi-trailers, stake storage semi-trailers, flatbed semi-trailers, low-bed semi-trailers, container carrier trailers, cargo semi-trailers, and other hundreds of products. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!
Specification
Name | YOUCAN Bulk Cement Tank Trailer |
Model | YCH9401 YCH9402 |
Volume | 33-71m3 |

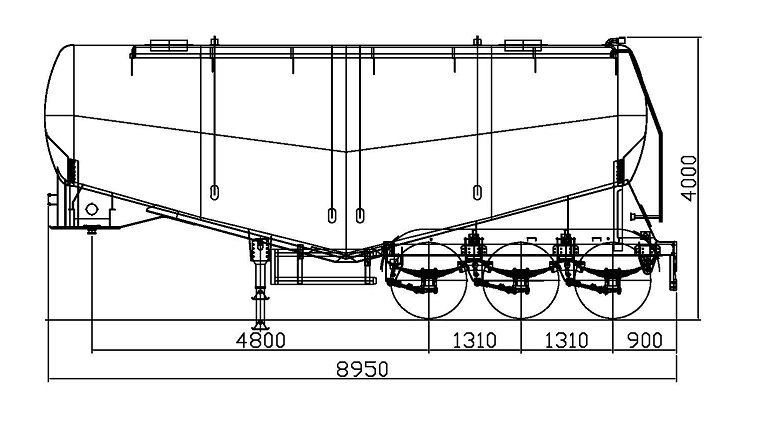

Overall dimension | 10500-13750 *2500* 3900mm |
Loading capacity | 40T |
Tank thickness(mm) | Tank Body is 5mm |
back cap is 6mm. Q355 | |
Main beam | middle plate is 8mm. Q700 |
Diesel engine | Weichai 4102 |
Compre ssor | Fuda 14/2 |
Axle brand and number | 13T Fuwa Brand, 3 units OR BPW |
Manhole cover | 2 |
Discharge valve | 125mm butterfly valve |
Kingpin | 50# or 90# |
Steel Spring | 90mm/10 leaf spring suspension |
Suspension system | Common Mechanical suspension |
Tyre and quantity | 12R22.5 12sets |
Landing gear | 28T, double speed operation |
Brake system | Dual Line braking system , ABS. |
Brake air chamber | Four double chamber Two single |
Electrical system | 24V,7 pin socket,One set 6-core standard Cable |
Light | Tail lamp with turn signal, brake light & reflector, |
side lamp etc | |
Tool box | 1 set |
Spare tire carrier | 1 set |
Painting | Optional |
Packing | Polish with wax before shipping |
