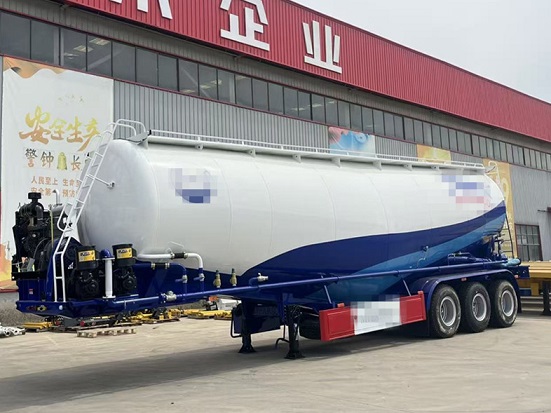

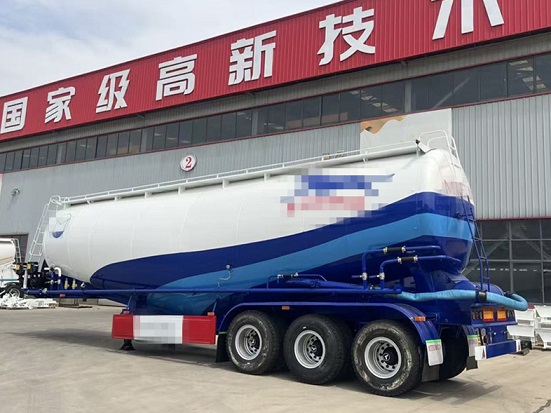

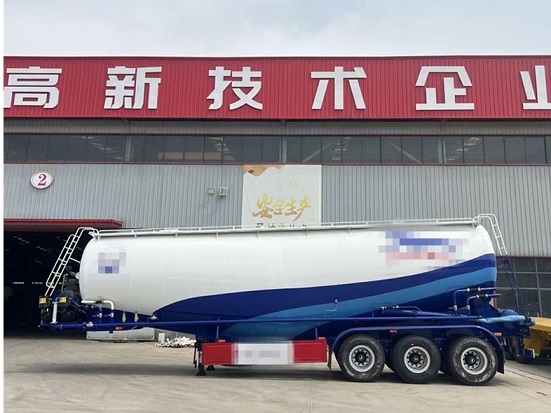

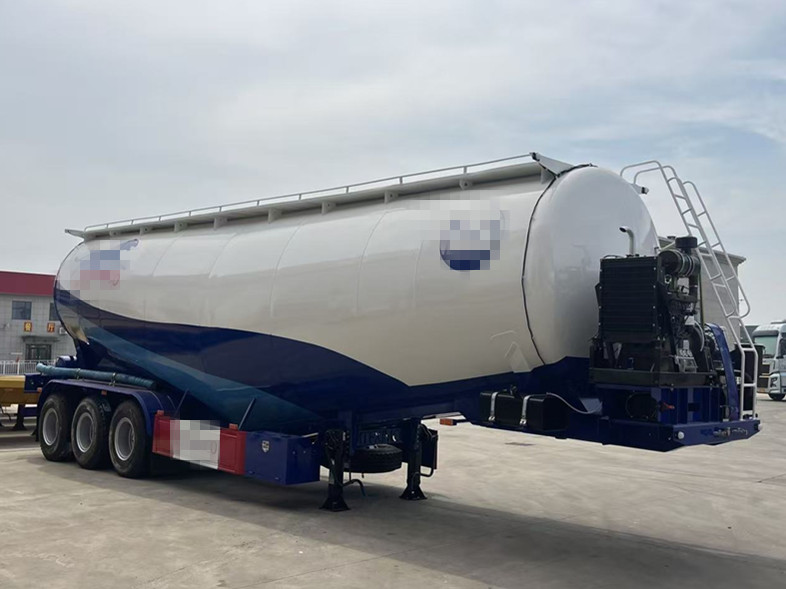

51.3 CBM Capacity for Bulk Cement Transportation

The 51.3 CBM Cement Tanker Semi Trailer is designed for efficient transportation of bulk cement and powder materials. With a 51.3m³ effective tank volume and a single-compartment tank structure, it provides a large loading capacity for bulk cement transportation between cement plants, construction sites and distribution terminals.

The carbon steel tank is built with a practical combination of 3.0 mm and 4.0 mm plate thickness, while the tank heads use 4.0 mm steel plate. This configuration provides a strong and durable tank structure for demanding transportation conditions.

Carbon Steel Tank Structure

This cement bulker trailer uses carbon steel as the main tank material. The tank body is designed for strength and durability during long-distance bulk cement transportation.

The tank is manufactured with:

• Tank material: Carbon steel

• Effective volume: 51.3 m³

• Tank structure: Single compartment

• Tank thickness: 3.0 + 4.0 mm

• Head thickness: 4.0 mm

• Manholes: 3 standard manhole covers

The single-compartment design provides a straightforward solution for transporting bulk cement and similar powder materials.

T700 High-Strength Steel Main Beam

The trailer is equipped with a T700 high-strength steel main beam. The high-strength structural design helps provide the necessary strength for a large-capacity cement tanker trailer while maintaining a robust chassis structure.

The lower flange thickness is 12 mm, providing additional structural support to the trailer frame.

3-Axle YOUCAN Axle Configuration

The trailer is equipped with three YOUCAN axles, each rated at 13 tons.

Axle configuration:

• Axle brand: YOUCAN

• Axle capacity: 13 tons per axle

• Number of axles: 3

• Total axle rating: 39 tons

• Brake adjustment: Manual

This 3-axle configuration is suitable for heavy-duty bulk cement transportation and provides a stable chassis structure for the 51.3 CBM tank.

Mechanical Suspension

The 51 CBM cement tanker trailer uses a 3-axle conventional mechanical suspension system with 60# balance pin and hanger components.

The mechanical suspension is designed for durability and ease of maintenance, making it a practical option for commercial transportation applications.

JOST 90# Interchangeable Kingpin

The trailer is equipped with a JOST 90# interchangeable kingpin. The interchangeable design allows convenient replacement and maintenance while providing a reliable connection between the tractor and semi trailer.

Heavy-Duty Landing Gear

The trailer uses FUWA 28-ton single-speed landing gear. The landing gear provides stable support when the trailer is disconnected from the tractor.

12.00R20 Tires

The trailer is configured with Linglong tires in size 12.00R20.

The wheel and tire configuration includes:

• Tire brand: Linglong

• Tire size: 12.00R20

• Quantity: 13 tires

• Steel rim: Factory standard, silver

Air Compressor and Cement Discharge System

For pneumatic bulk cement unloading, the trailer is equipped with a Fuda dual-cylinder air compressor, model 12/2-S.

The cement discharge system includes a 108 mm × 8 m flexible discharge hose, providing a practical connection for unloading bulk cement at the destination.

ABS Braking System

The trailer is equipped with a Kemei 4S/2M ABS system and factory-standard brake valves.

The braking configuration includes:

• ABS: Kemei 4S/2M

• Brake chambers: 4 double chambers + 2 single chambers

• Brake valve: Factory standard

Vietnam-Specific Configuration

This 51.3 CBM cement tanker trailer was configured according to the requirements of a Vietnamese customer.

The trailer is prepared for initial inspection and registration testing in Vietnam. The exterior dimensions are approximately:

• Length: 12,160 mm

• Width: 2,500 mm

• Height: 4,000 mm

The final length and width are subject to technical confirmation and adjustment according to the customer's requirements.

Blue and White Exterior Painting

The tanker is designed with a blue-and-white exterior painting scheme according to the customer's technical requirements.

The blue-and-white finish provides a clean commercial appearance while allowing the trailer to be customized for the customer's fleet requirements.

Customized Safety and Transportation Features

The Vietnam configuration includes several customer-specific features:

• No YOUCAN logo on the vehicle body

• YOUCAN aluminum identification plate

• Customized mud flaps

• Parking brake valve

• Reflective strips installed along the blue skirt

• Decorative perforated side protection panels

• Customized perforated rear ladder panel

• Handshake air connection valve at the front

• Additional anti-splash plates behind the rear mudguards

• Lifting hooks welded on the top of the tanker for loading and unloading during vessel transportation

These features are configured to meet the customer's transportation, shipping and inspection requirements.

Reliable Cement Tanker Trailer for Vietnam

With a 51.3m³ capacity, carbon steel tank, T700 main beam, three 13-ton Fengbao axles and a conventional mechanical suspension system, this cement tanker semi trailer is designed as a practical solution for bulk cement transportation.

YOUCAN TRAILER can manufacture cement tanker trailers with different capacities, materials, axle configurations, suspension systems, dimensions and discharge systems according to the transportation requirements of customers in Vietnam and other international markets.
