46000L Aluminum Fuel Tanker Trailer

Aluminum Fuel Tank Trailer is also called Aluminum Fuel Tanker, used for carrying different liquid like fuel, petrol, water, palm oil etc.

The volume of the fuel tankers transport semi-trailer can be customized, to reach 30,000 liters, 45,000 liters, 56,000 liters. With different numbers of compartments(1-2-3..6 or more), and 2-3-4 axles to meet the different regulatory requirements of different countries.

Description
Specification
Reviews(0)

    Overview Of Youcan Aluminum Fuel Tank Trailer

    Aluminum Fuel Tank Trailer is also called Aluminum Fuel Tanker, used for carrying different liquid like fuel, petrol, water, palm oil etc.

    The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With different numbers of compartments(1-2-3..6 or more), and 2-3-4 axles to meet the different regulatory requirements of different countries.

    Video of Aluminum Tankers Trailers for Sale

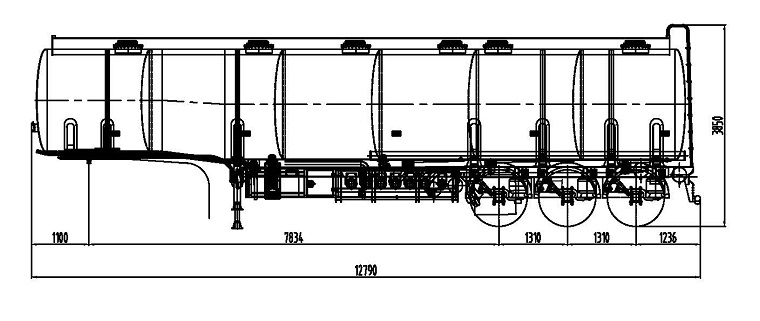

    The tanker structure is an elliptic cylindrical column or trapezoidal surface shape, made of high-quality  steel plates. The warehouse of the tank can be divided into several rooms. A wave plate is welded into the middle of each warehouse, in order to reduce the impact of the oil and increase the strength of the tank when the truck is running. A coating of anticorrosive paint and decorative paint are painted on the exterior of the tank to prevent rust. Indicating meter is on the side of the oil tank, and it can directly indicate the tank volume.

    One of the common types of tank trailer you will find on the road is the fuel tank trailer. The trailer is used to transport gasoline, diesel oil, and benzene. It is also used to transport some types of inflammable and plosive liquid.

    aluminum fuel tanker1

    Gasoline and diesel fuels are used for standard cars and other types of vehicles. Hence, most fuel trailers have more than one compartment. Why do fuel tank trailers have several compartments? Here are the major reasons:

    The efficiency principle: A trailer with different compartment can transport different kinds of liquid at the same time. This reduces the transportation cost and saves fuel because the trips are reduced to one.

    Transporting each liquid in a different tanker is more expensive and inefficient. Trailers with multiple compartments can transport different grades of gasoline in one trip. A service station can receive all the products needed in just one trip.

    To ensure stability: A liquid fluctuates to all directions in the tank when the trailer is running on a slope. If the fuel tank trailer has a large capacity, the fluctuations will cause major changes in the center of mass.

    This, in turn, will cause major changes of the axle load, which affect the stability of the truck and trailer. The instability may cause the trailer to jackknife or rollover. Using a multi-compartment model reduces the changes of the axle load and hence keeps the trailer stable.

    The advantages of using aluminum alloy on tank trailers include:

    It is lighter in weight than steel

    Aluminum tank trailer can carry more liquid load

    The trailers are safer and more secure

    The material is resistant to rust and hence it does not pollute the liquid during transportation

    Some of the disadvantages of aluminum allow include:

    The strength of aluminum is almost half the strength of steel

    It is highly prone to stress cracking

    Welding aluminum plates is cumbersome

    It is more expensive than steel

    aluminum fuel tanker2

    Features of Youcan Aluminum Feul Tank  Semi-trailer

    1. CAE and Hypermesh software were used for multiple finite element analysis and verification

    to optimize the structure of the tanker and its components.

    2.The frame adopts high strength ALUMINUM plate and the latest lightweight structure design to ensure the strength of the frame while reducing the weight to the lightest.

    3. Use of robotic welding technology: The tank body is automatically welded by an advanced robot welding machine,  incerases the body strength at chassis joints, reduces tension effect, provides unity of body.

    4. Armature discharge box’s cover: Provides mobility and ergonomic handling even in the narrow area.

    5. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.

    6. Gooseneck cross section design conforms to EN 13094 standard

    aluminum fuel tanker3

    Aluminum Feul Tank Semi-trailer Supplier

    Youcan trailer is a professional semi-trailer manufacturer providing complete semi-trailer solutions for almost all types of trucks on different applications. The company specialized in providing liquid tank trailers, bulk cement tank trailers, tipper trailers, stake storage semi-trailers, flatbed semi-trailers, low-bed semi-trailers, container carrier trailers, curtainsider trailers, and other hundreds of products. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!

    46000L Aluminum Fuel Tanker Trailer

    fuel tanker trailer

    Name

    Youcan Aluminum Fuel Tanker

    Model

    YCH9400GYL

    Capacity:

    Geometrical Volume 30000-56000 Liters

    Overall dimension

    115001200013000*2500* 3990mm

    Number Of Compartment

    1 ~ 6

























    Tank body

    Barrel wall

    Aluminum 5182:      5.0  mm

    Anti-wave plate

    Aluminum 5182:      6.0  mm

    Bulkhead

    Aluminum 5182:      6.0  mm

    Dish end

    Aluminum 5182:      6.0  mm

    Top walking way

    Anti-skid Aluminum alloy

    Top handrail

    Manual ,aluminum alloy

    Loading System

    Suitable for loading from top, and bottom In the lock box on the right side of tanks







    Unloading  System

    Discharge box position

    Middle Side/tail side

    Rubber box tube

    Round PVC/stainless steel pipe

    Unloading hose size

    4Inch*6 M discharge hose

    Overfill box

    Open overflow box/double-cover overflow box/single-cover overflow box

    Discharge valve

    One per compartment

    Pressure Vacuum Vent

    One per compartment, roll-over type incorporates with manhole.

    Manhole cover

     One per compartment, 20" manhole cover with Fill/emergency vents, pressure vacuum vents, overfill holes and vapour transfer vent hole.

    Emergency Valve

    4" aluminum, pneumatic controlled emergency valve each compartment. Flange coupling to discharge pipe, BUNA-N seal & steel trim. Slash shield vortex breaker over each foot valve.

    Vapour Recovery system

    optional

    Extinguisher box

    2Pcs.

    Extinguisher support

     Size 9kg, 2Pcs.

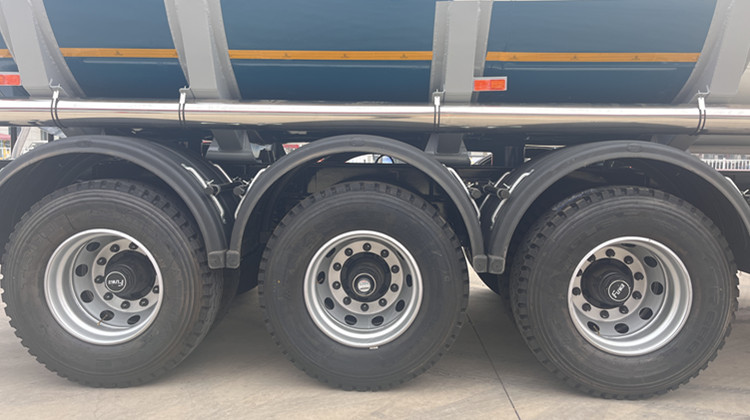

    Axle brand and number

    2/3/4 Axles, Brand BPW or Youcan

    Kingpin

    50# or 90#



    Suspension system

    Air suspension with front lifting / Mechanical

    Tyre

    8-12-16 sets

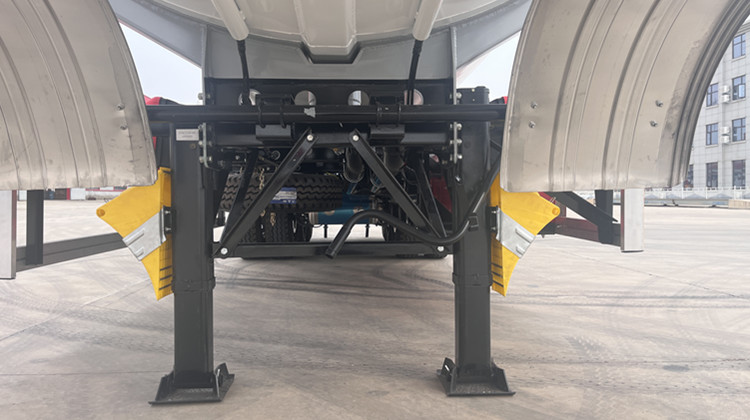

    Landing gear

    Jost/Youcan 28T, double speed operation

    Brake system

    Dual Line braking system , Wabco ABS.

    Brake air chamber

    Four double Two single

    Electrical system

    24V,7 pin socket,One set 6-core standard Cable

    Light

    Tail lamp with turn signal, brake light & reflector

    side lamp etc

    Tool box

    1 set

    Spare tire carrier

    1 sets

    Painting

    Optional

    Packing

    Polish with wax before shipping
