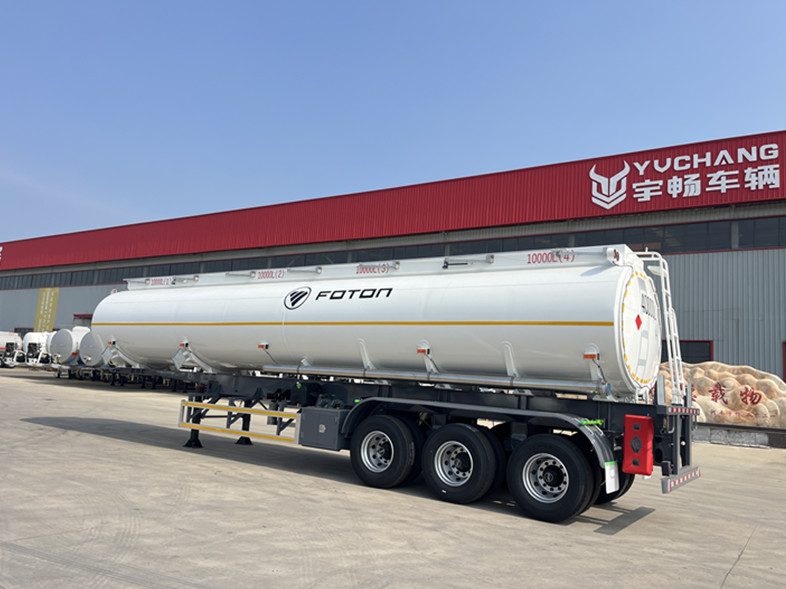

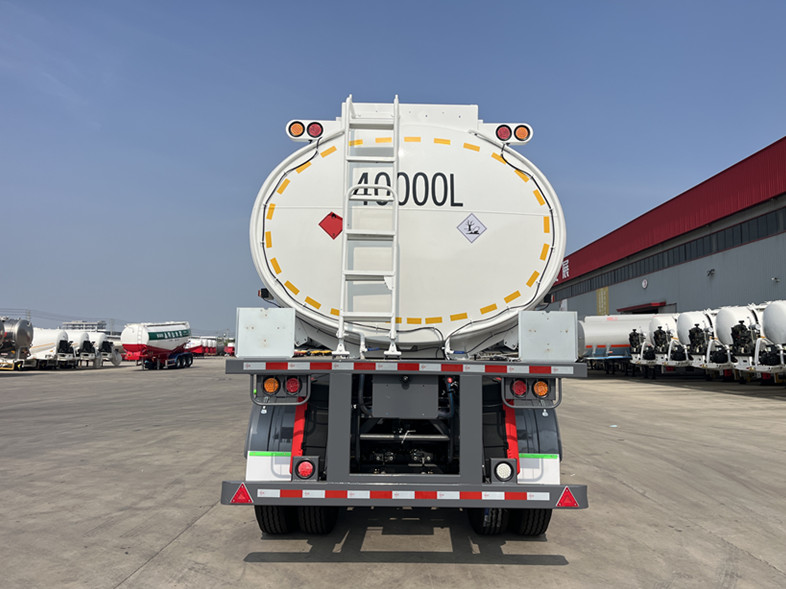

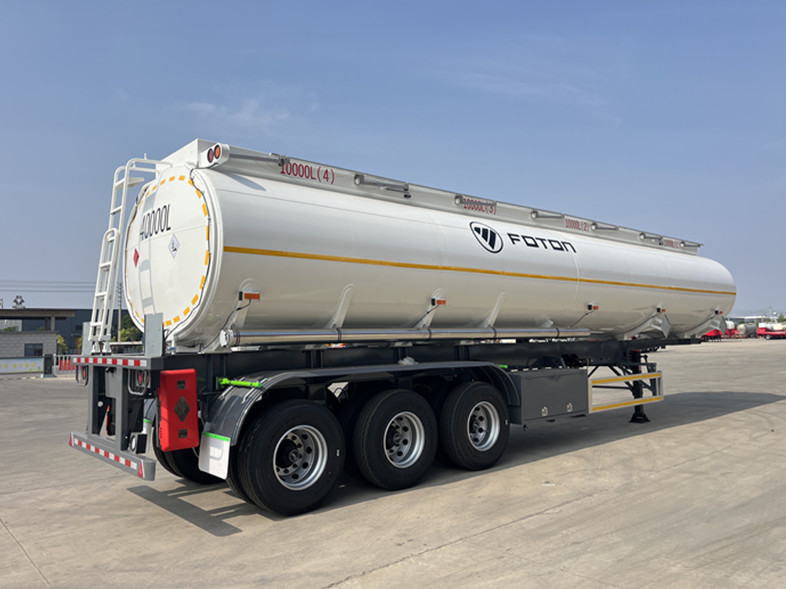

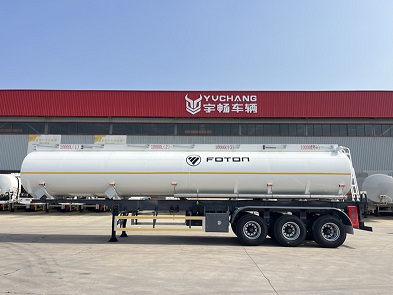

40000L 4 Compartments Carbon Steel Fuel Tanker Semi Trailer for Guinea

YOUCAN TRAILER's 40000L 4 compartments carbon steel fuel tanker semi trailer is specially designed for petroleum transportation in Guinea and African markets. This heavy-duty fuel tanker trailer is developed for transporting diesel, gasoline, and aviation fuel with high efficiency, safety, and reliability.

With a 40,000-liter large capacity and four independent compartments, this oil tanker semi trailer provides flexible fuel distribution solutions for fuel stations, petroleum logistics companies, mining projects, and transportation operators. The multi-compartment design allows different fuel products to be transported separately, improving loading efficiency and reducing operational costs.

Durable Carbon Steel Tank Body

The tanker body is manufactured with high-quality carbon steel, providing excellent strength and durability for long-distance fuel transportation under demanding road conditions.

The tank adopts a professional compartment structure with optimized internal baffles to improve stability during driving and reduce liquid impact. The standard tank configuration includes:

• Tank material: Carbon steel

• Effective volume: 40,000 liters

• Compartments: 4 compartments with evenly distributed capacity

• Cylinder thickness: 5.0 mm

• Head thickness: 5.5 mm

• Baffle thickness: 5.5 mm

The exterior surface is professionally painted with a white tank body and grey chassis, and the whole trailer is treated with protective wax before delivery to improve corrosion resistance during transportation and storage.

Reliable Fuel Loading and Discharging System

This fuel tanker trailer is equipped with a complete fuel loading and unloading system suitable for daily petroleum transportation operations.

Each compartment is equipped with an independent 20-inch manhole cover with filling port, emergency pressure vacuum vent and overflow protection design.

The discharge system includes:

• 4 × 3-inch French fuel discharge valves

• Right-side discharge outlets

• Bottom valve system

• Top and bottom loading system

• 4 independent compartments for different fuel transportation requirements

The optimized unloading system helps improve operation efficiency while ensuring safe fuel handling.

Heavy Duty Chassis for African Road Conditions

Considering the complex road conditions in Guinea and other African countries, YOUCAN TRAILER adopts reinforced chassis components to improve durability and service life.

The trailer is equipped with:

• FUWA 13-ton heavy-duty axles

• Reinforced mechanical suspension system

• JOST 90# assembled king pin

• JOST A300C linkage landing legs

• WABCO ABS braking system

• WABCO brake valve

The reinforced mechanical suspension provides excellent load-bearing capacity and stability, making the trailer suitable for long-distance transportation on highways and rough roads.

Safety and Operational Features

Safety is a key consideration for fuel transportation. This 40m³ fuel tanker semi trailer is equipped with multiple safety components to ensure reliable operation.

Standard safety equipment includes:

• Two 8kg fire extinguishers

• Pressure vacuum ventilation system

• Emergency venting device

• Four independent tank compartments

• Anti-roll internal baffle structure

• Reliable braking system with ABS

These safety features help improve transportation security and reduce risks during fuel delivery operations.

Professional Manufacturing by YOUCAN TRAILER

As an experienced semi trailer manufacturer in China, YOUCAN TRAILER provides customized fuel tanker trailer solutions according to different market requirements.

We can customize:

• Tank capacity from small to large volume

• Number of compartments

• Axle brands and suspension systems

• Loading and unloading systems

• Color and appearance design

• Different country transportation standards

This 40000L carbon steel fuel tanker semi trailer is an ideal solution for fuel distributors and logistics companies looking for a reliable petroleum transportation trailer in Guinea, Africa and other international markets.
