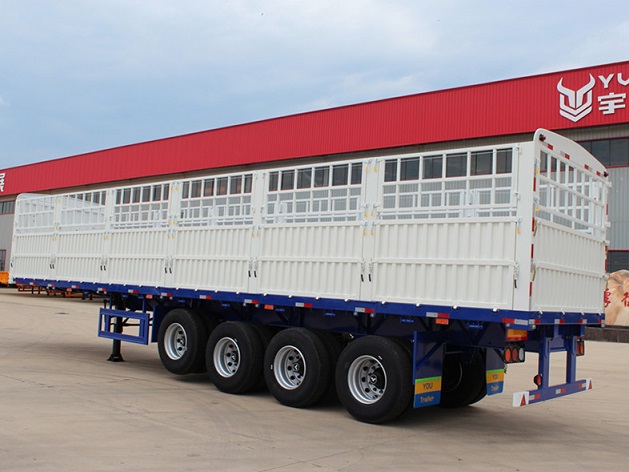

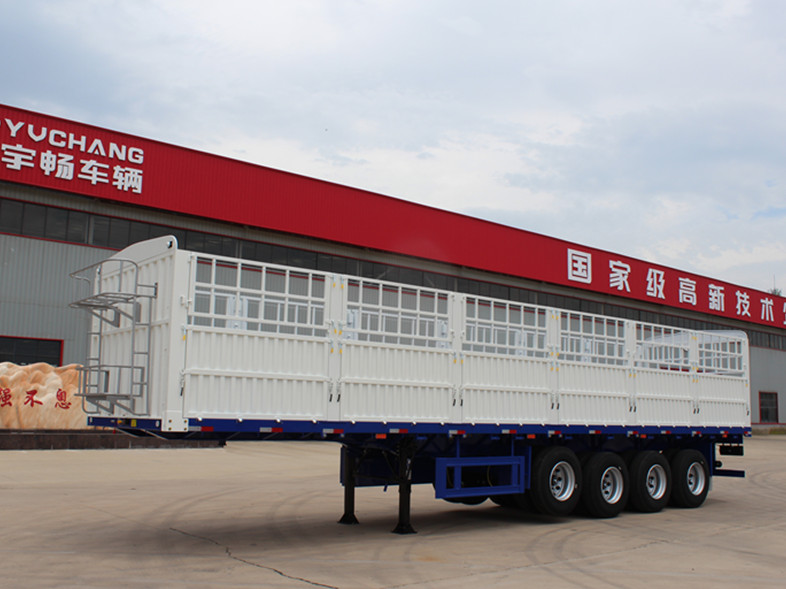

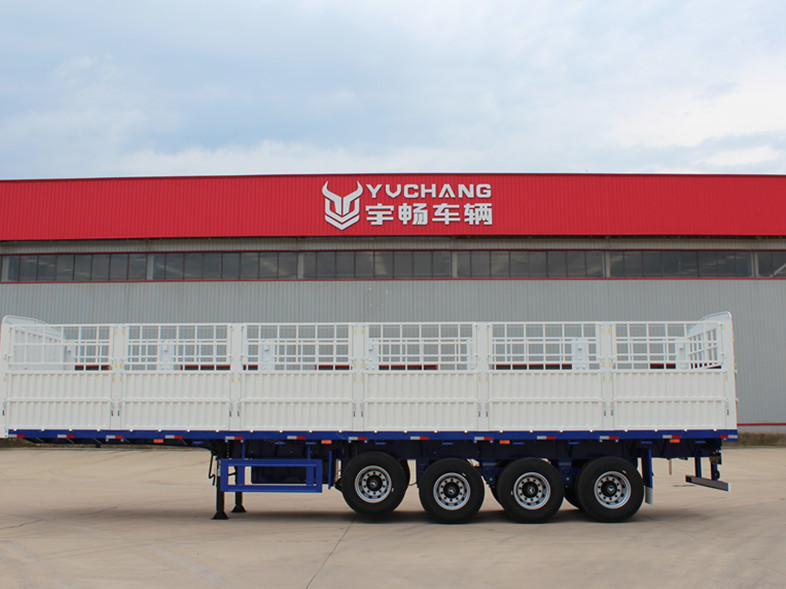

4 Axle 12.5m Heavy Duty Stake Semi Trailer for Myanmar

YOUCAN TRAILER's 4 axle 12.5m stake semi trailer is a professional cargo transportation solution designed for logistics companies, construction material suppliers and freight operators in Myanmar and other developing markets.This heavy duty stake trailer combines a strong chassis structure with flexible cargo loading capability. The side stake design provides better cargo protection while allowing easy loading and unloading of different goods including steel materials, machinery, construction materials, agricultural products and general cargo.

With a length of 12.5 meters and a four-axle configuration, this semi trailer provides excellent payload capacity and improved stability for long-distance transportation.

Reinforced High Strength Steel Frame Design

The trailer chassis adopts a reinforced steel structure to ensure durability under heavy loading conditions.

 The main frame components include:

 High strength steel main beam

500mm high longitudinal beam

10mm upper flange plate

6mm web plate

12mm lower flange plate

14# waterproof side beam

10# W-type cross members

 The optimized frame structure improves bending resistance and torsional strength, making the trailer suitable for rough road conditions commonly found in Myanmar and Southeast Asia.

Flexible Stake Side Wall Design

The stake semi trailer adopts removable stake posts and side boards, providing excellent flexibility for different transportation requirements.

Advantages:

Easy cargo loading and unloading

Suitable for various cargo types

Improved cargo safety during transportation

Easy maintenance and replacement

The side wall height is designed according to customer transportation requirements, making it suitable for general cargo logistics operations.

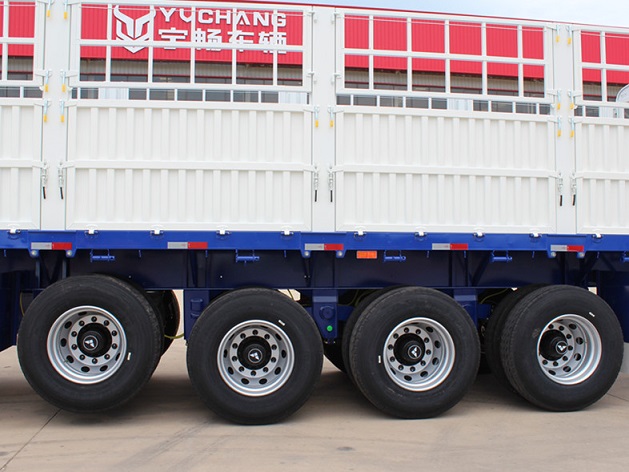

Heavy Duty Suspension and Axle System

To meet demanding transportation environments, this 4 axle cargo trailer is equipped with reliable running gear components.

Standard configuration:

FUWA 13 ton axles × 4

Front axle air suspension with lifting function

Rear three axle reinforced mechanical suspension

FUWA 28 ton linkage landing legs

90# assembled king pin

The combination of air suspension and mechanical suspension provides better stability, durability and load-bearing performance.

Reliable Braking System

Safety is a key factor for cargo transportation.

This stake semi trailer is equipped with:

Kemi ABS 4S/2M braking system

Six brake chambers (4 large + 2 small)

Reliable braking performance

LED lighting system

The braking system helps improve driving safety during long-distance transportation.

Professional Manufacturing for Myanmar Market

YOUCAN TRAILER has extensive experience manufacturing semi trailers for international markets.

We provide customized solutions including:

Different trailer lengths

Different axle configurations

Suspension customization

Side wall height adjustment

Color customization

OEM production

The 4 axle 12.5m stake semi trailer is an ideal choice for logistics companies looking for a durable, high-capacity and cost-effective cargo trailer in Myanmar.
