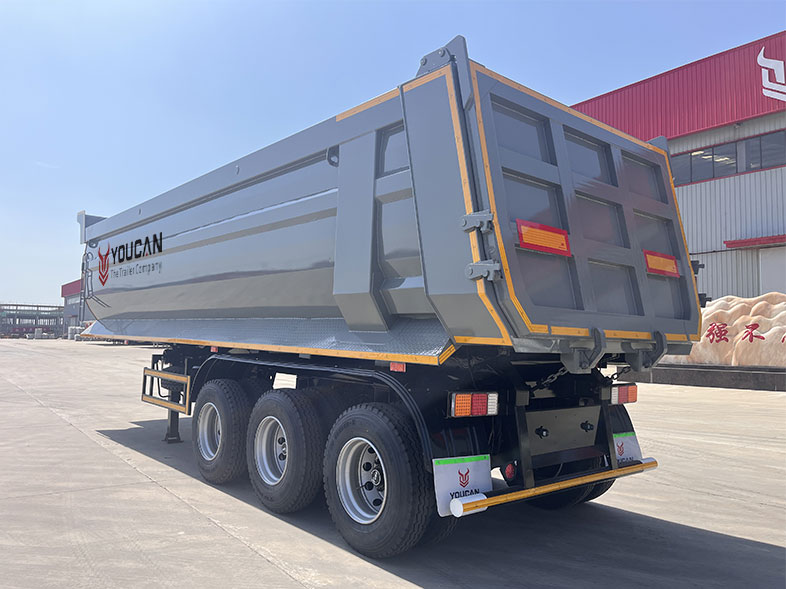

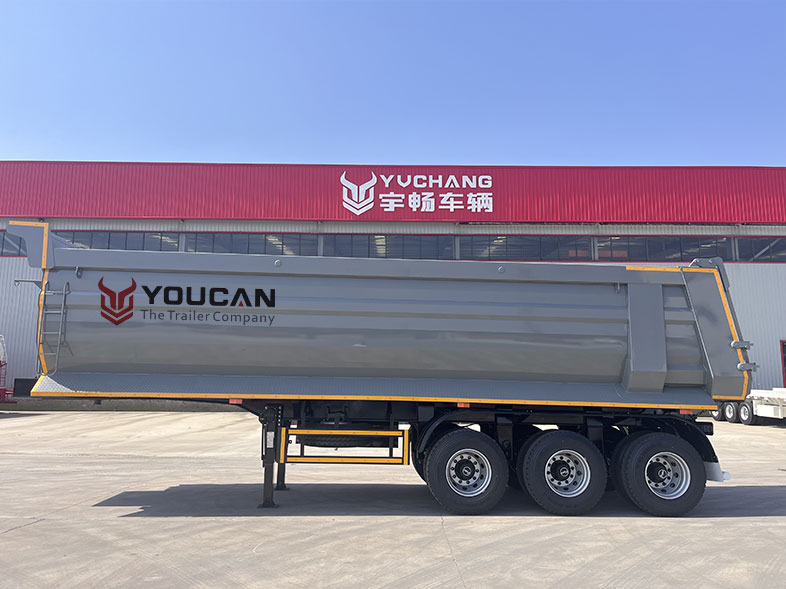

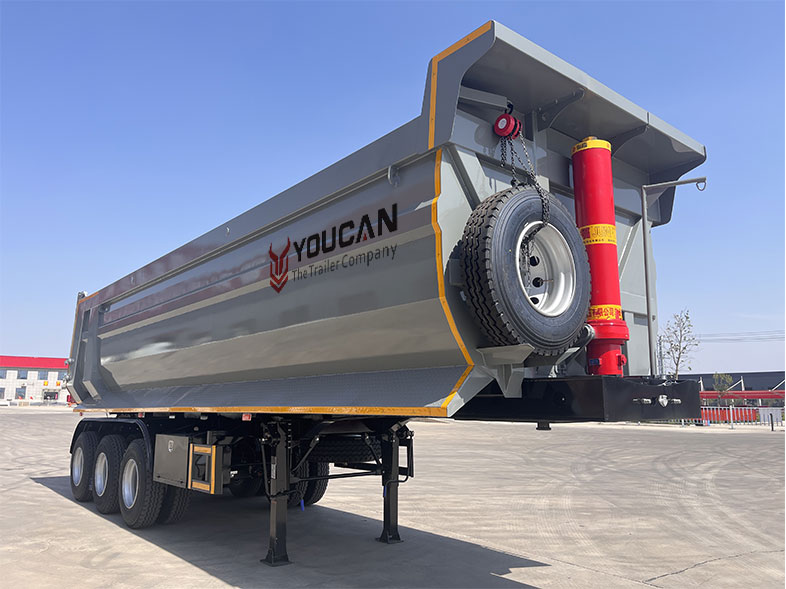

Youcan 80 Ton U Shape Rear Dump Semi Trailer
Youcan 3 Axle hydraulic U shape tipper trailer (also called dump semi-trailer) is a heavy-duty trailer designed for the efficient transportation and unloading of bulk materials such as sand, gravel, coal, or agricultural products. The U-shape of the trailer bed ensures better handling and easier unloading of the cargo, while the hydraulic system allows for automated and convenient tipping of the load. The load capacity varies from 30 to 45 cubic meters or 30 to 80 tons.

    Overview of Tipper trailer

    According to the product requirements for the users who transport solid aggregate, coal, earthmoving, asphalt, wheat and similar bulk cargoes to the highways, we offer a wide selection of tippers that challenge the most demanding conditions on the truck and trailer product line, which provides great convenience and practicality during unloading. The low centre of gravity of the trailer gives it improved road handling combined with excellent tipping stability.

    The Youcan LIGHT tipper trailers with its low unladen weight is optimised for payload thanks to its high strength steel box body.

    The Youcan SOLID tipper trailers with their high strength steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.

    Features of Youcan Tipper trailers

    1.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.

    2. The Youcan tipper body is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.

    3. The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be RAL9003 or will on customer demand. The total thickness of the paint work is 120micron.

    4. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.

    5. Optimised body structure prevents goods from sticking.

    Tipper trailer Supplier

    Youcan trailer is a professional truck trailer manufacturer providing complete trailer solutions for almost all types of trailers on different applications. The company specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!


    Youcan 80 Ton U Shape Rear Dump Semi Trailer


    YCH9401Z  YCH9402Z



    Overall dimension


    Loading capacity


    Tank thickness(mm)

    Body is 3-8mm .

    Main beam

    middle plate is 10mm.   Q700

    Axle brand and number

    13T/16T/20T BPW/FUWA, 2/3/4 Axles


    50# or 90#

    Steel Spring

    10*13*90mm  10*16*90mm 12*16*120mm

    Suspension system

     Mechanical suspension


    12R22.5 / 12.00R20

    Landing gear

    28T, double speed operation

    ABS Brake System


    Kormee/WABCO brand, 2S2M

    Brake system

    Dual Line braking system ,

    Brake air chamber

    Four double  chamber Two single

    Electrical system

    24V,7 pin socket,One set 6-core standard Cable


    Tail lamp with turn signal, brake light & reflector,

    side lamp etc

    Tool box

    1 set

    Spare tire carrier

    1 sets


    Sand shot blasting process with grit metal. 2 coats of epoxy primer and acrylic finished paint will on customer demand. The total thickness of the paint work is 120micron.


    Polish with wax before shipping
