Youcan 45-80T Tipper Trailer

Youcan 3 Axle hydraulic U shape tipper trailer (also called dump semi-trailer) is a heavy-duty trailer designed for the efficient transportation and unloading of bulk materials such as sand, gravel, coal. The U-shape of the trailer bed ensures better handling and easier unloading of the cargo, while the hydraulic system allows for automated and convenient tipping of the load. The load capacity varies from 30 to 40 cubic meters or 30 to 80 tons.


    Overview of  Tipper trailer

    According to the product requirements for the users who transport solid aggregate, coal, earthmoving, asphalt, wheat and similar bulk cargoes to the highways, we offer a wide selection of tippers that challenge the most demanding conditions on the truck and trailer product line, which provides great convenience and practicality during unloading. The low centre of gravity of the trailer gives it improved road handling combined with excellent tipping stability.

    The Yuchang LIGHT tipper trailers with its low unladen weight is optimised for payload thanks to its high strength steel box body.

    The Youcan SOLID tipper trailers with their high strength steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.

    Features of Yuchang Tipper trailers

    1.CAE and Hypermesh software were used for multiple finite element analysis and verification to optimize the structure of the vehicle and its components.

    2. The Youcan tipper body is automatically welded by an advanced large-scale special welding machine. Ensure the safety of the trailer and increase the service life.

    3. The metal surfaces of the vehicle after the welding process is cleaned with sand shot blasting process with grit metal.In order to protect the surfaces from rusting on the top of the surfaces with 2 coats of epoxy primer and acrylic finished paint will be RAL9003 or will on customer demand. The total thickness of the paint work is 120micron.

    4. Performance needs source -Durable body structure, superior production technology and premium equipment, turn into long lifetime income.

    5. Optimised body structure prevents goods from sticking.

    Tipper trailer Supplier

    Yuchang Trailer is a professional truck trailer manufacturer providing complete trailer solutions for almost all types of trailers on different applications. The company specialized in providing aluminum tankers, fuel tankers, bulk cement tankers, dumper trailers,tipper trailers, stake/sidewall  trailers, flatbed trailers, low-bed trailers, container carrier trailers, cargo trailers, and other hundreds of products. Feel free to contact us for latest price of new semi-trailers. Competitive price with reliable quality waiting for you!

    3 Axle U shape tipper trailer Specifications



    Youcan Trailer


    3 axles, BPW/SAF/FUWA Brand

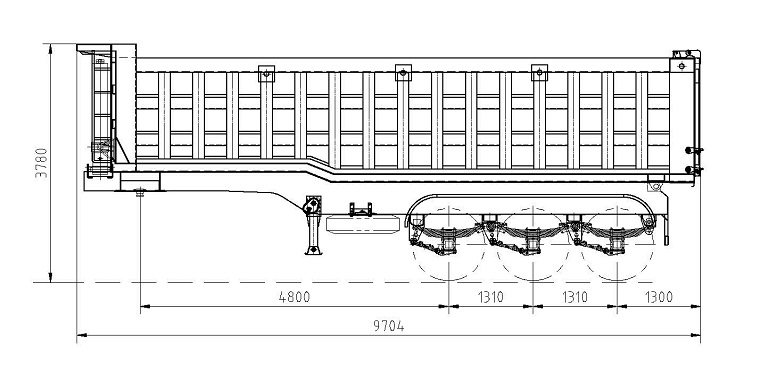

    3 Axle U shape tipper trailer dimensions

    30-40 CMB

    3 Axle U shape tipper trailer capacity

    30-80 ton




    Main beams Q345B, upper flange:14mm, middle:12mm, down:16mm

    King Pin

    2 inch or 3.5-inch JOST Brand

    Base/Side Plate

    6mm/4mm, carbon steel


    Mechanical, airbag suspension


    11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/ Bridgestone brand
